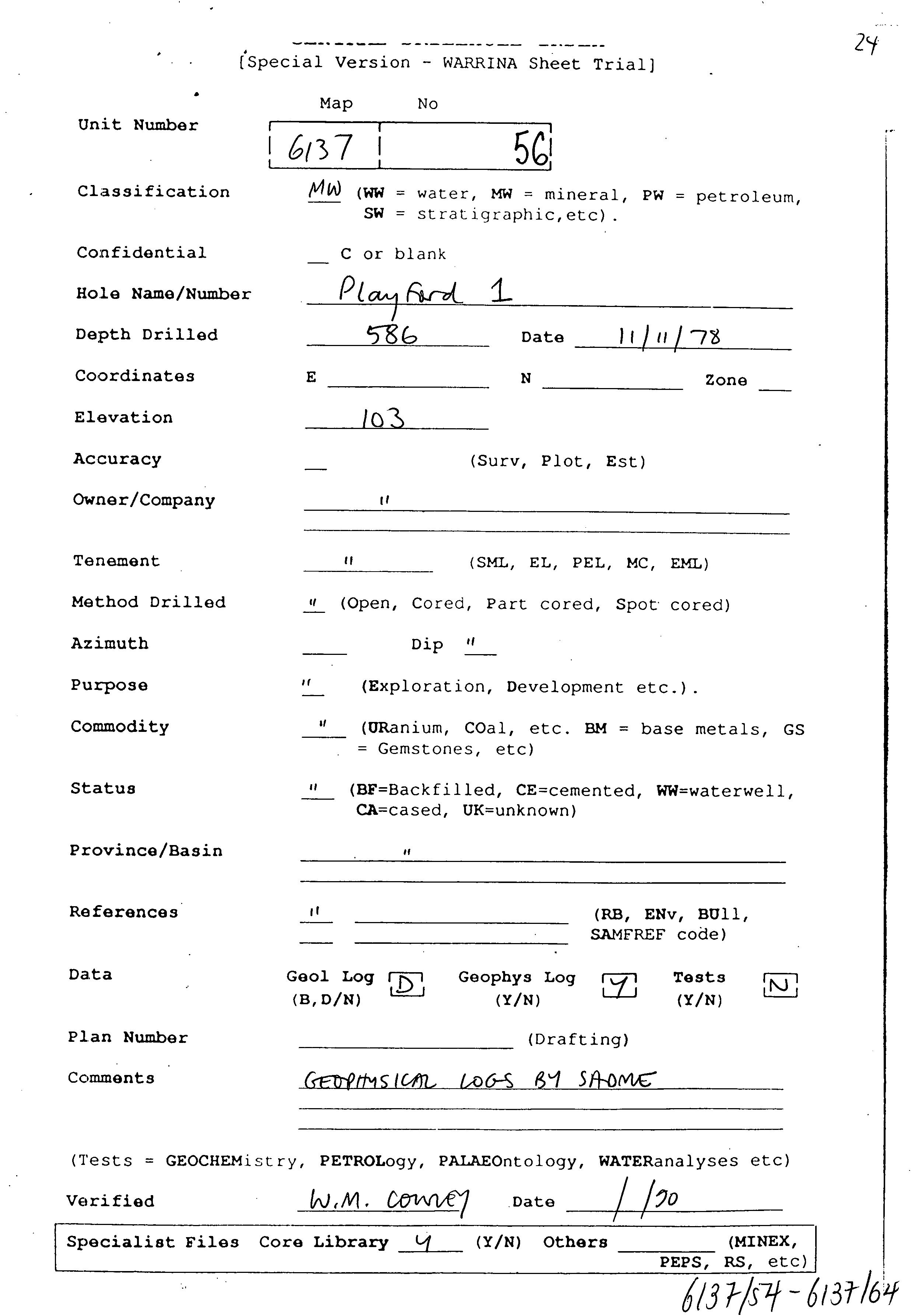

Drillhole:

16699

Drillhole Name:

PLAYFORD 1

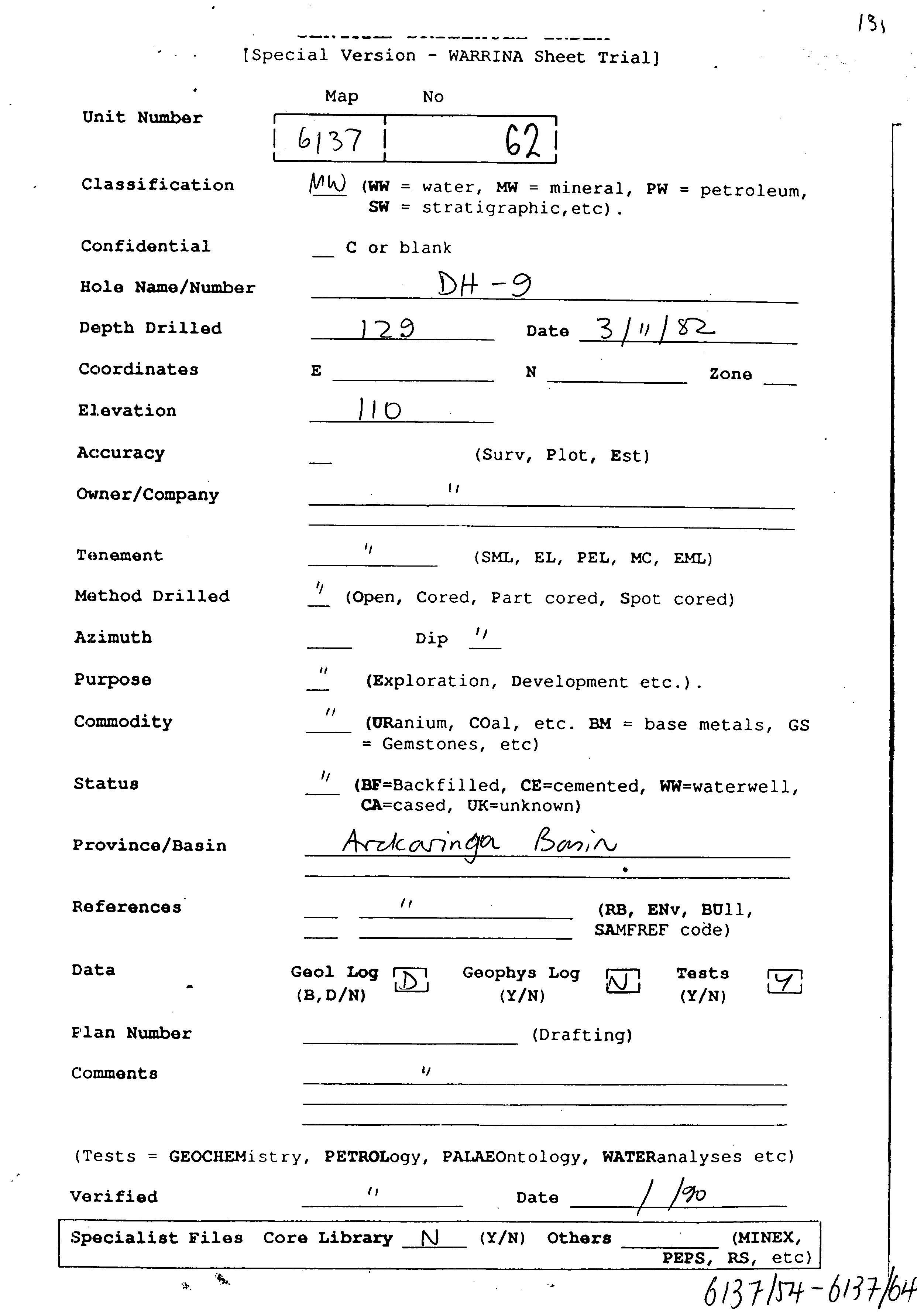

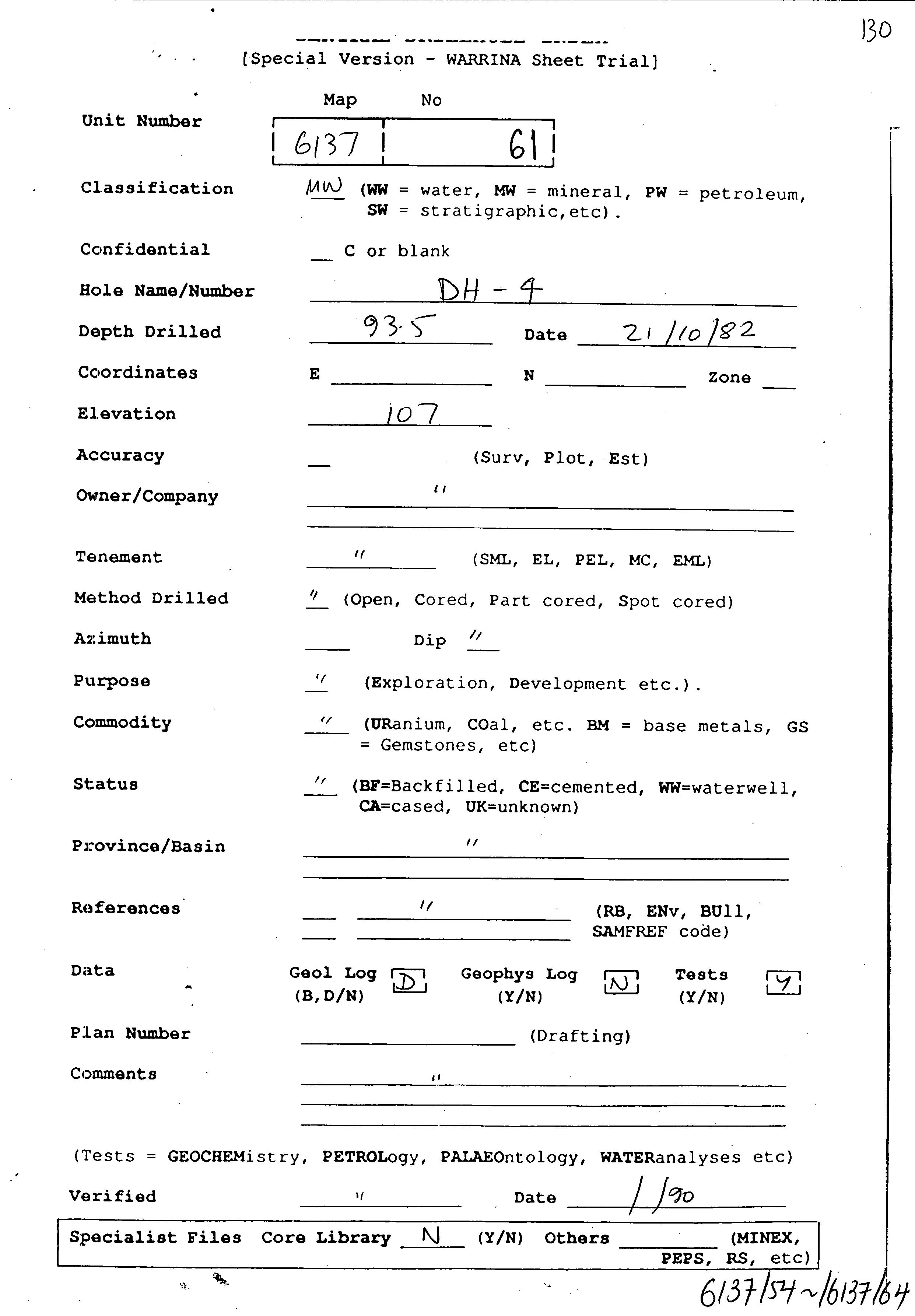

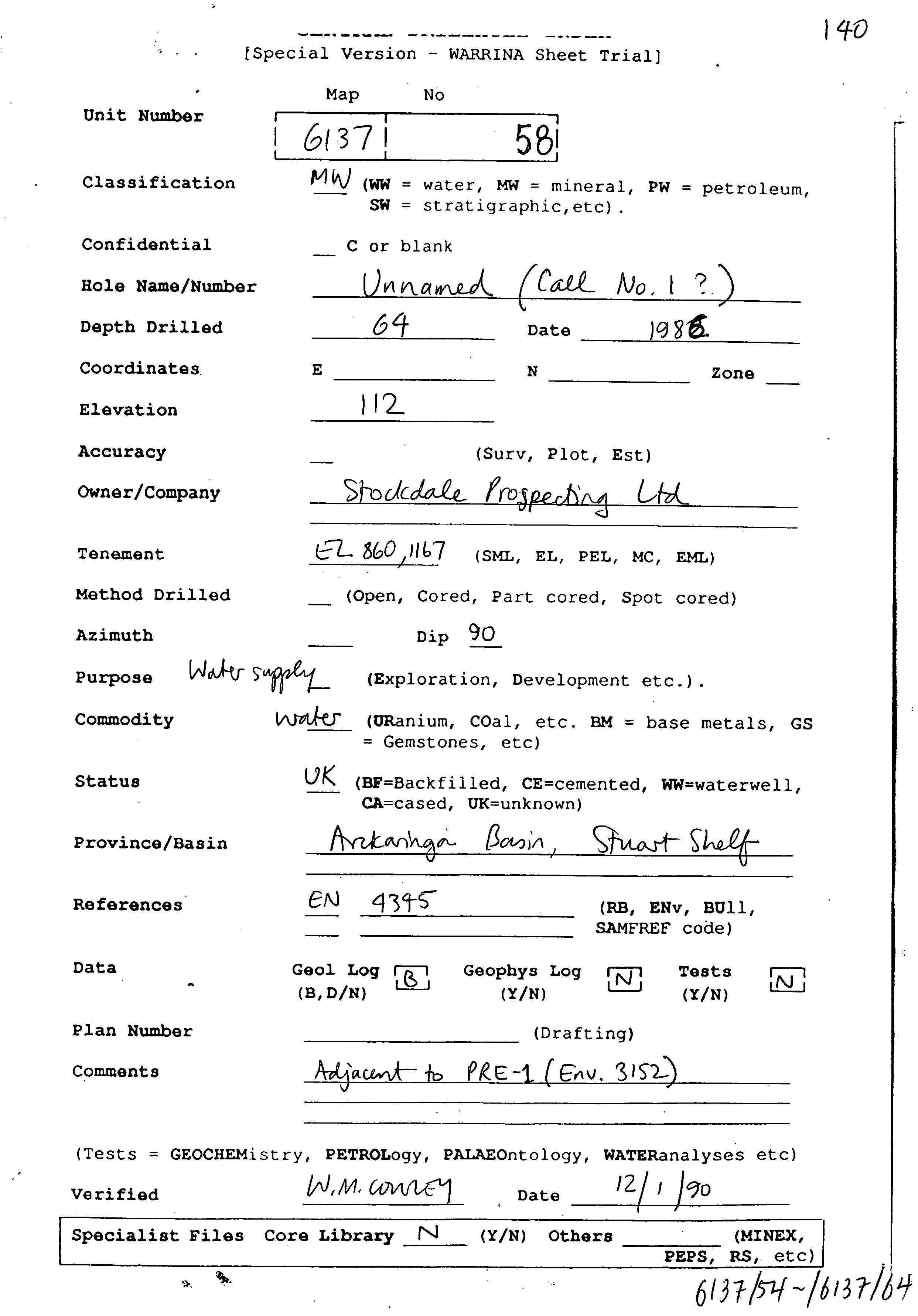

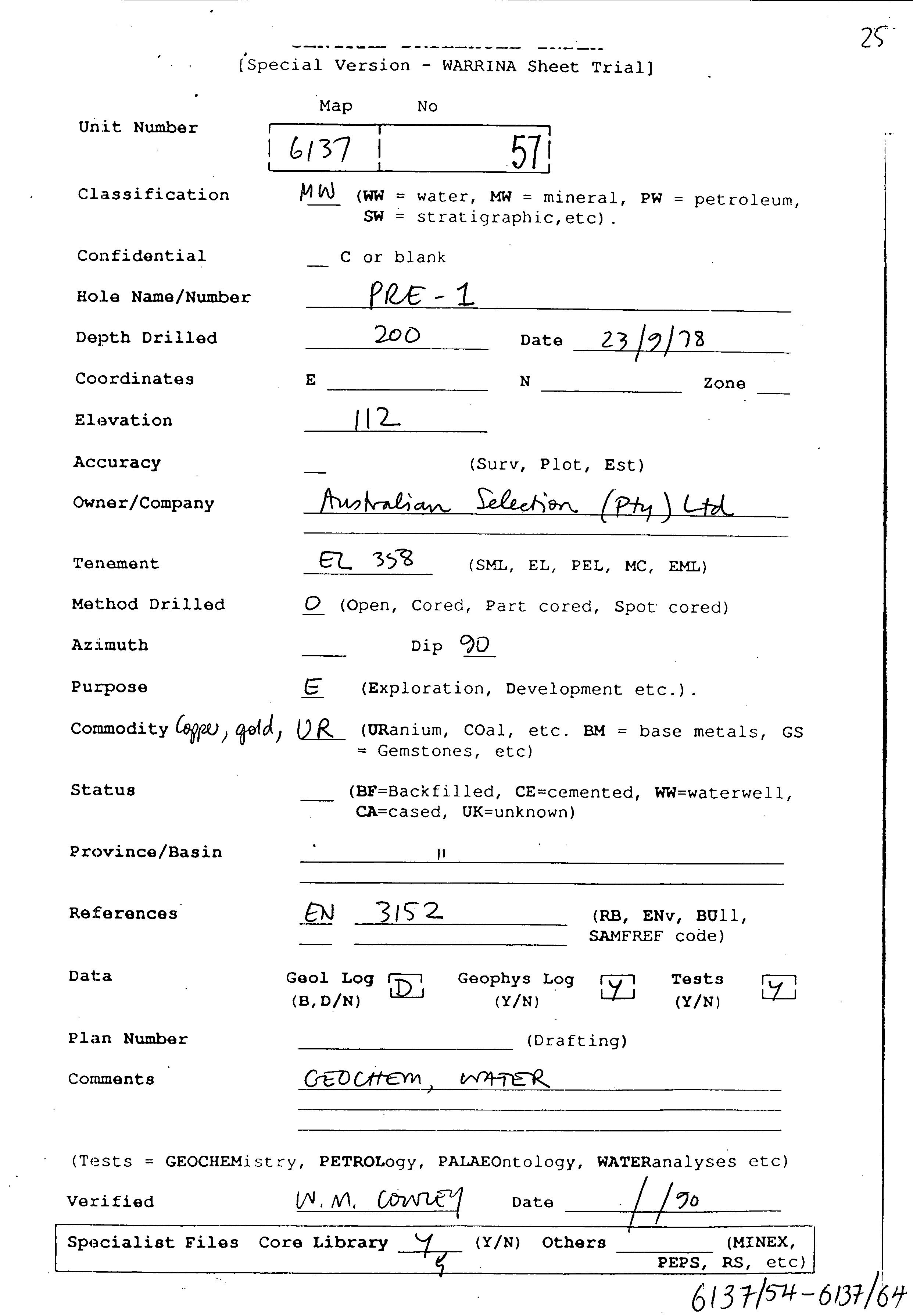

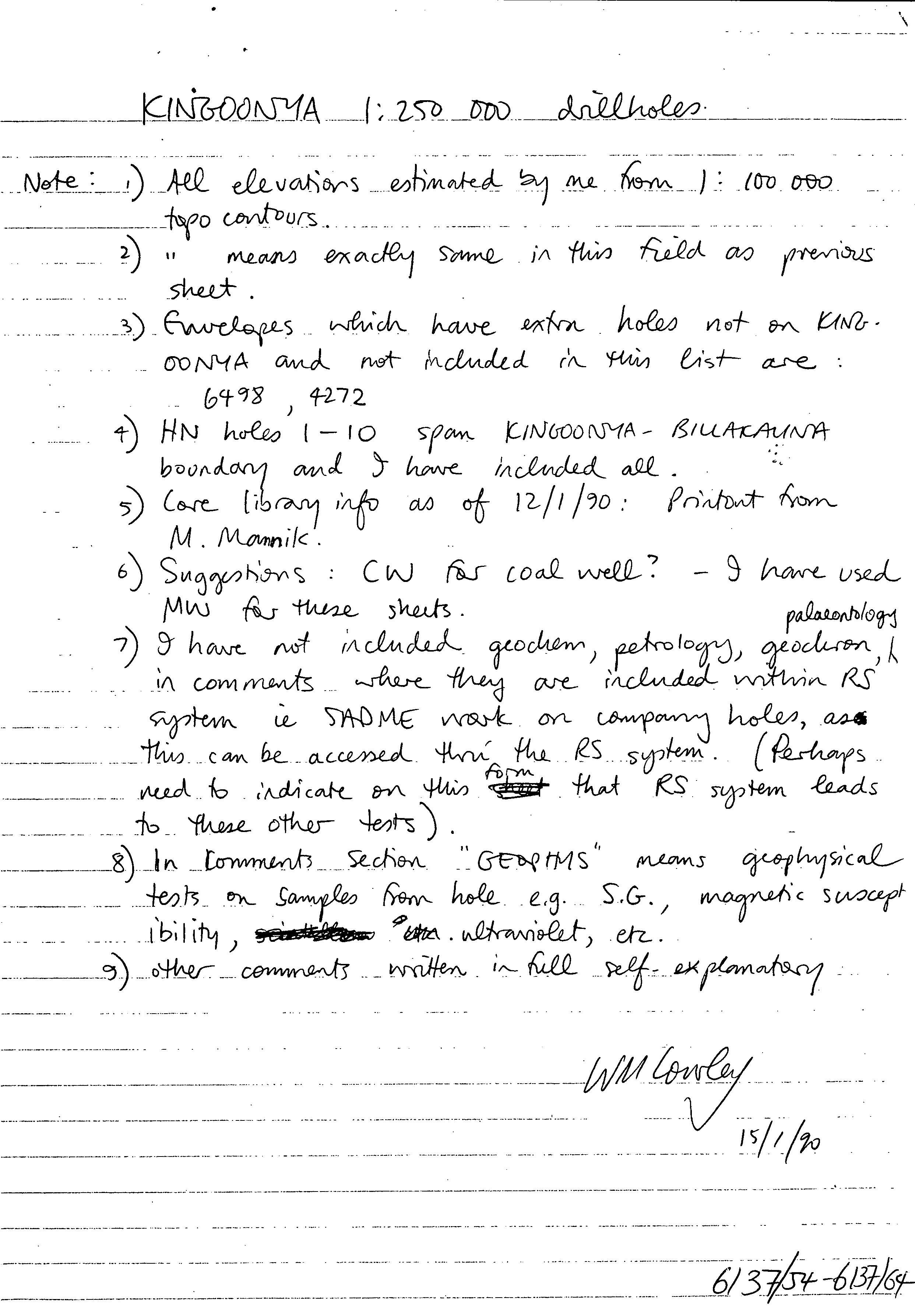

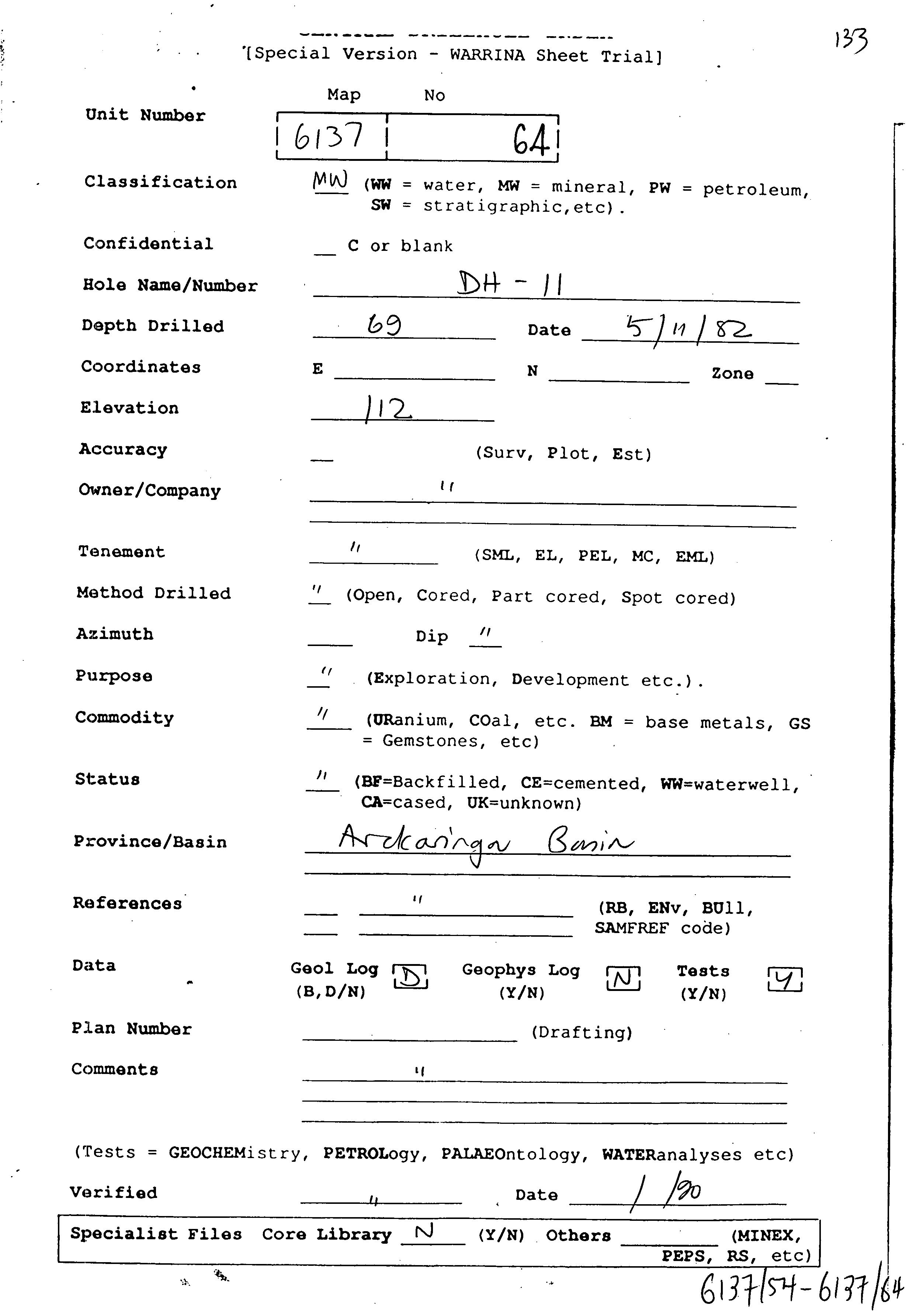

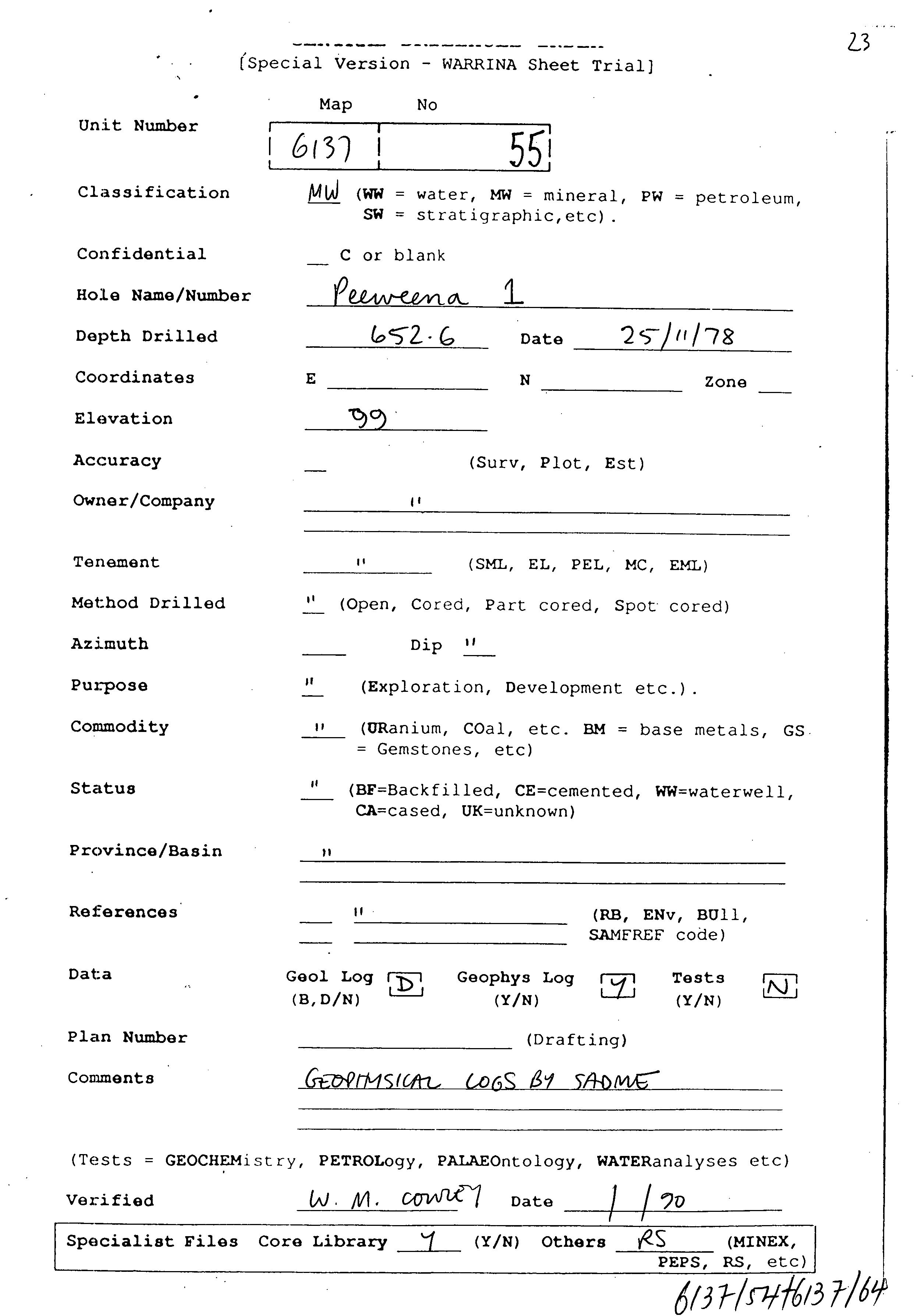

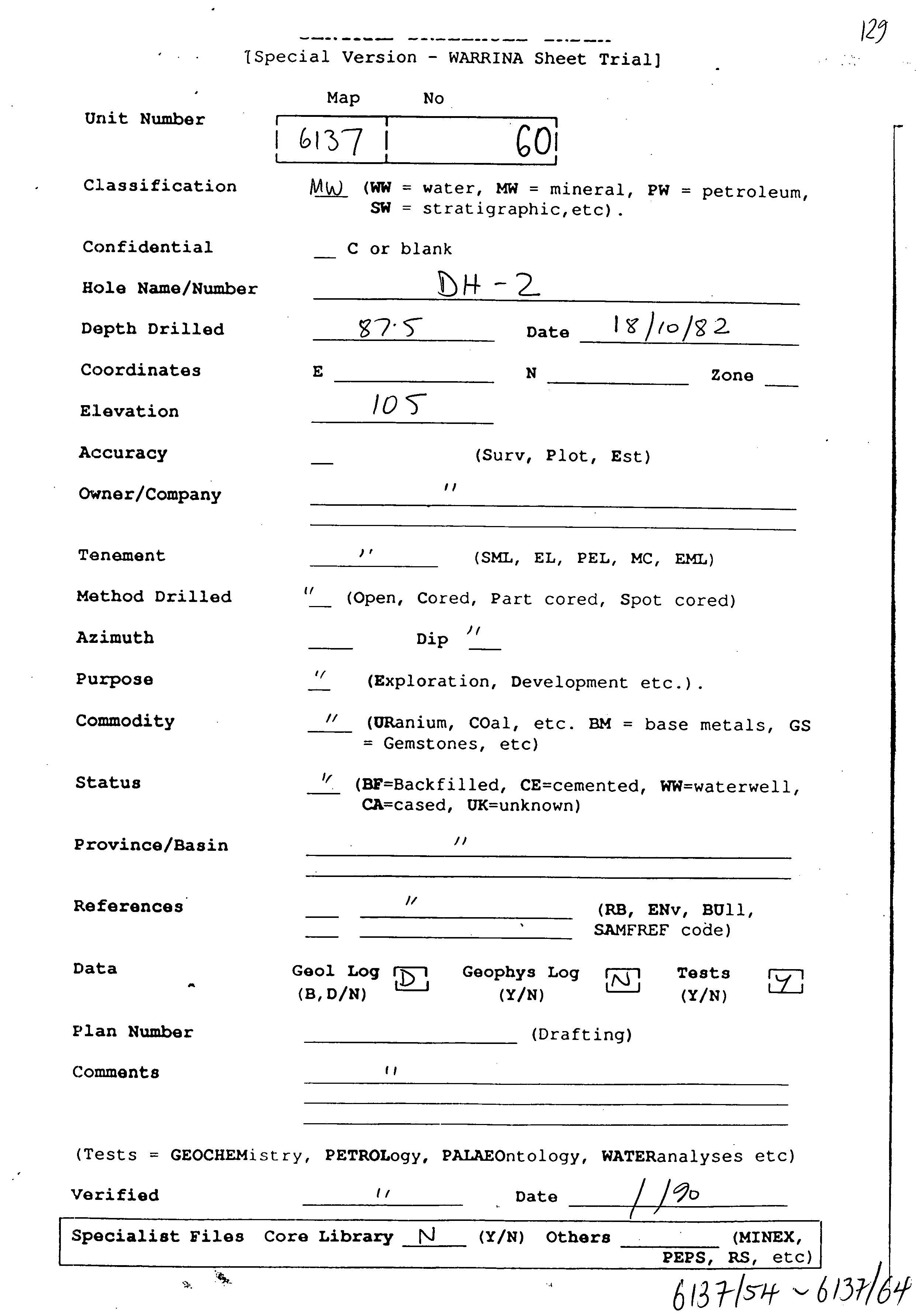

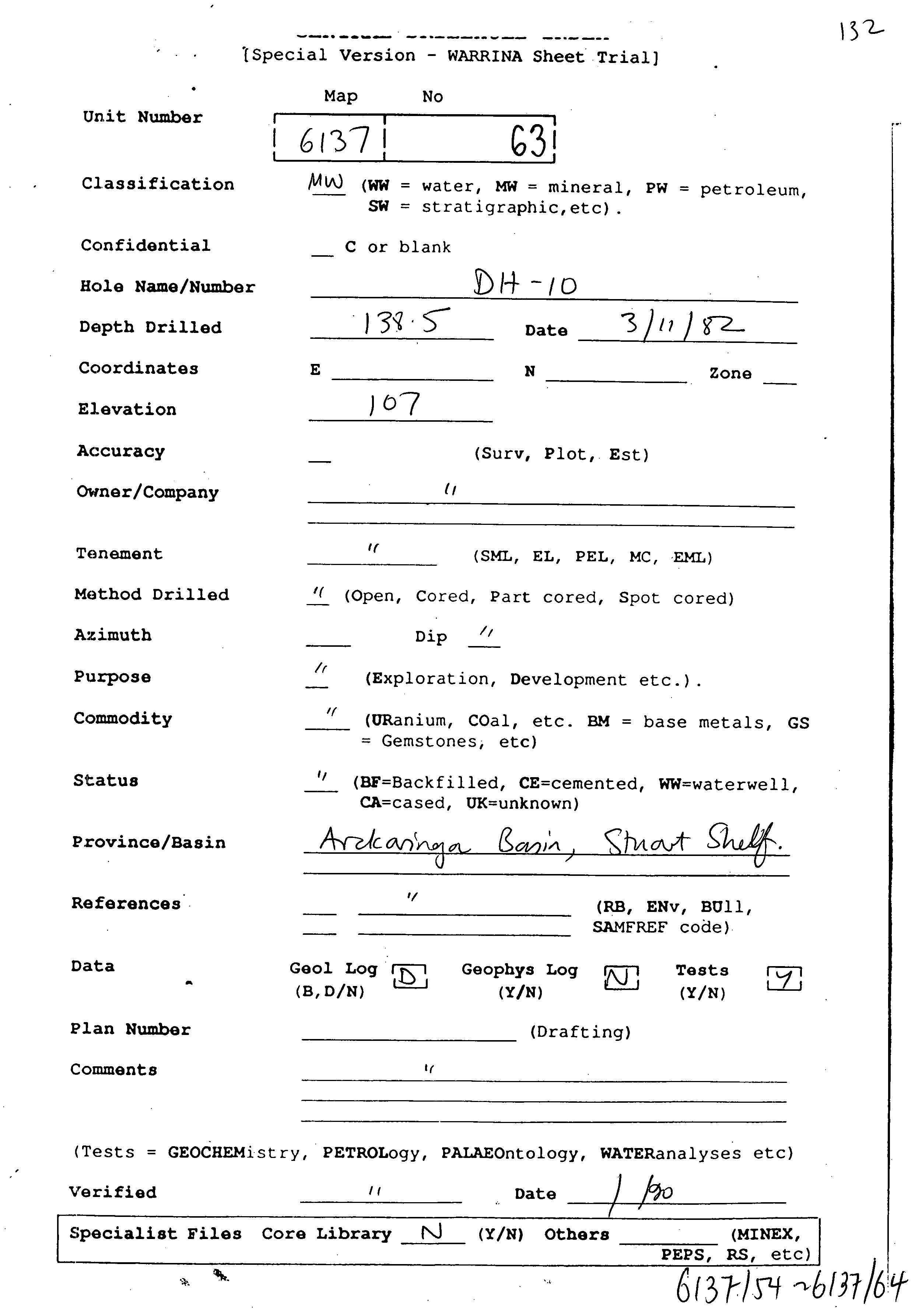

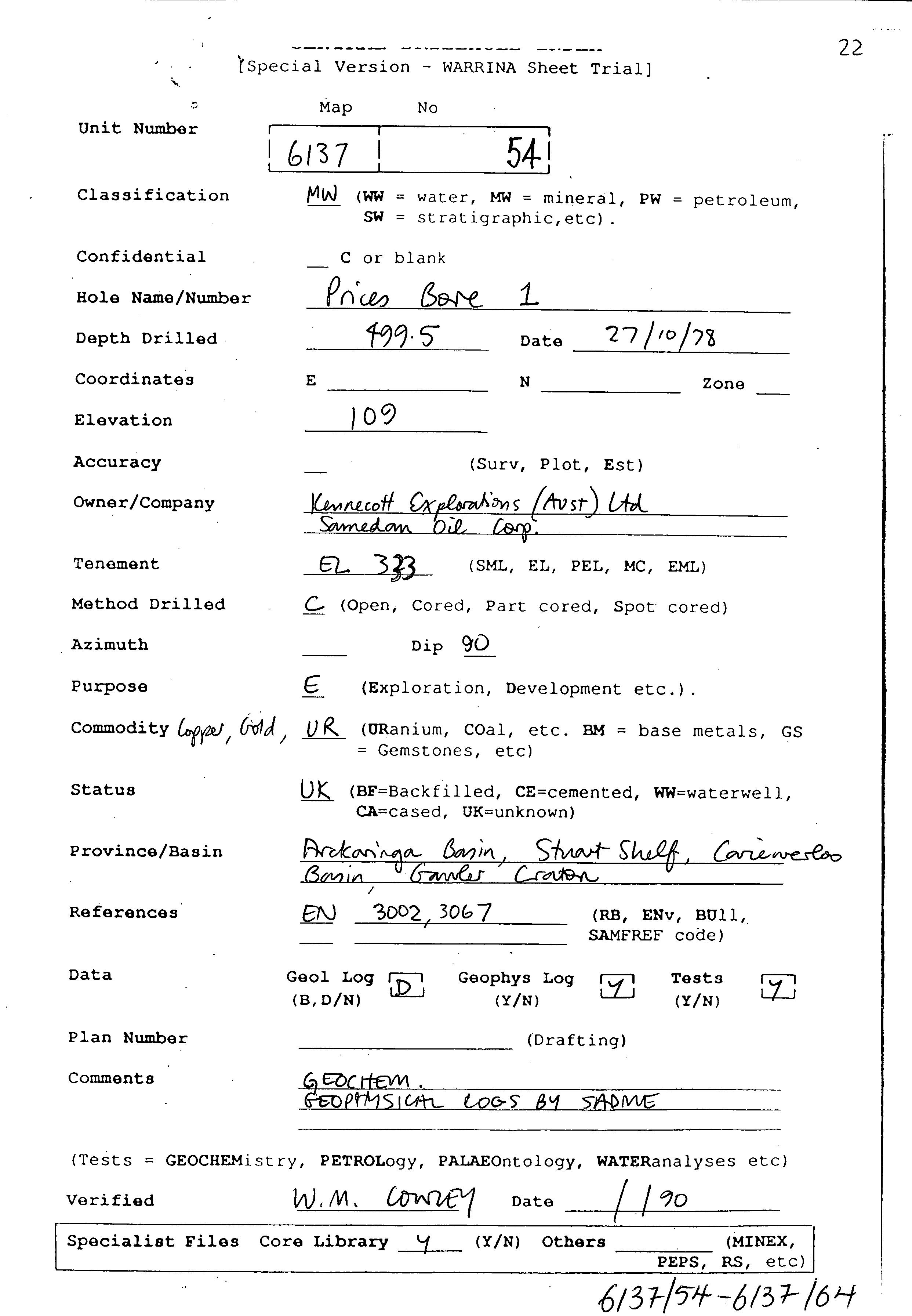

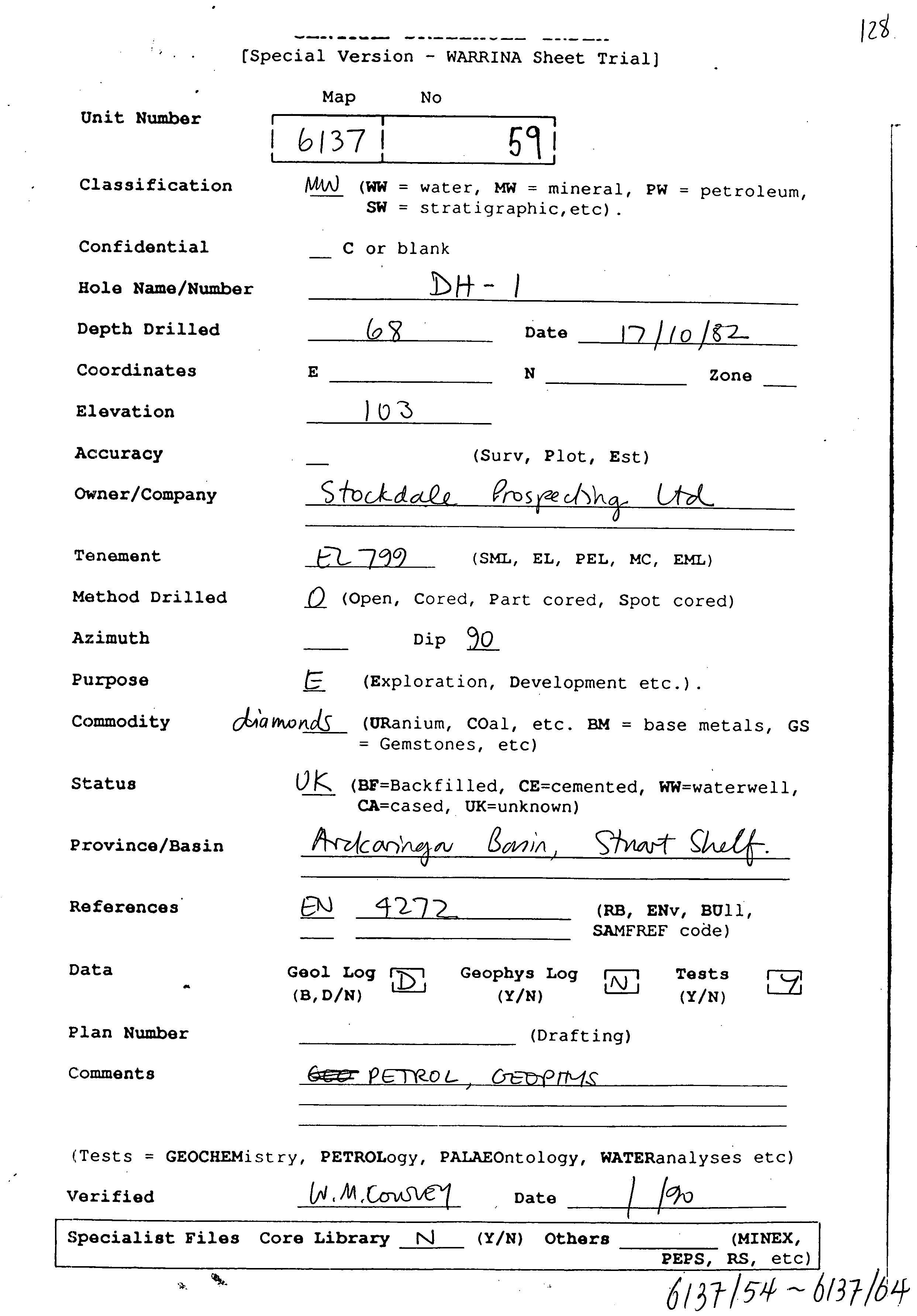

Details LocationStratigraphyLithologyPetrophysics Core Details Spectral Scanning Rock Samples Historical Documents References

Representative Drillhole From a Larger Program

Drillhole Program Comments

Map / Unit Number

613700056

Max Drilled Depth (m)

586

Max Drilled Date

11/11/1978

Cored Length

553.3

Tenement

EL 333

Operator

Kennecott Exploration (Australia) Pty Ltd.

Target

Gold, Copper, Uranium

General Comments

DOWNHOLE LOGGING BY SADMESample method = Cored.Detailed Geol. Log

Dip

-90

Azimuth

Class

Mineral Water Well Petroleum Engineering Stratigraphy

Datum

GDA2020

Coordinate Source

MGA Easting

640218.7

MGA Northing

6662999.27

MGA Zone

Long Degrees

136

Long Minutes

Long Seconds

21.747

S Lat Degrees

S Lat Minutes

S Lat Seconds

22.703

Long Degrees Decimal

136.4560408

Lat Degrees Decimal

-30.1563064

Horizontal Accuracy

Map 250K

SH5311 KINGOONYA

Map 100K

6137 Parakylia

Map 50K

SA Geodata - Database Reference

Site No

13027

Metres From

Metres To

Map Symbol

Major Lithology

Minor Lithology

Description

32.7

CP-b

CLAYSTONE

Brown claystone.

Strat Unit Name

Boorthanna Formation

Strat Unit Description

Diamictite with shale intercalations in the basal unit, the upper unit with rhythmically bedded coarse and fine-grained clastics. Subaqueous deposition of glacial debris transported as mud flows.

GIS Code

CP---b

32.7

155.14

Erha

DOLOMITIC LIMESTONE

SHALE

Massive dolomitic limestone and shaly carbonate rock. Pelletal limestone, mudclasts and quartz grit at base.

Strat Unit Name

Andamooka Limestone

Strat Unit Description

Limestone, grey, off-white, brown, buff, pink, recrystallised, commonly dolomitised, locally sandy or pyritic. Intraclastic or oolitic interbeds; siliciclastics at base. Local trilobite fragments, archaeocyatha, calcimicrobes. Peritidal/subtidal shelf.

GIS Code

E-rh-a

155.14

437.79

Nhwstt

SHALE

SANDSTONE

Laminated red-brown shale and siltstone with minor fine-grained sandstone and carbonate interlayers. Between 201 and 257.5 m also coarse intraclast (mud and carbonate clasts) conglomerates and fine- to medium-grained, partly quartzitic sandstones.

Strat Unit Name

Tregolana Shale Member

Strat Unit Description

Shale, red and green; siltstone.

GIS Code

N-hwstt

437.79

438.18

Nhwsn

DOLOMITE ROCK

Massive dolomite.

Strat Unit Name

Nuccaleena Formation

Strat Unit Description

Dolomite, thin, laminated, micritic, with interbedded shale near the top.

GIS Code

N-hwsn

438.18

442.41

? MN

CONGLOMERATE

SANDSTONE

Conglomerate and pebbly sandstone.

Strat Unit Name

Mesoproterozoic-Neoproterozoic rocks

Strat Unit Description

Undifferentiated Meso-Neoproterozoic rocks.

GIS Code

442.41

586

M-p

SANDSTONE

SILTSTONE

Red-brown feldspathic sandstone with siltstone interlayers, minor quartzitic sandstone.

Strat Unit Name

Pandurra Formation

Strat Unit Description

Sandstone, quartz and lithic, m.g.-c.g., poorly sorted; sandstone, well-sorted, v.f.g.-m.g.; conglomerate, granule to pebble; mudstone; siltstone. Red, brown or purple with reduction spotting or mottling. Fluvial, large-scale cross-bedding and liesegang banding. Maximum deposition 1424±51 Ma (Rb-Sr).

GIS Code

M----p

	Qualifications	Organisation	Date	Metres From	Metres To
Select	Geologist	Office of Minerals & Energy Resourc	20/03/2019	0	586

Sample Allowed Hazard

Metres From	Metres To	Feet From	Feet To	Core Group	Library Location	Culled	Core Previously Inspected	Sample Record	Sample Returned to Library
33.00	38.00	108.27	124.67	Core	Tonsley	N	Y	N	N
38.00	42.60	124.67	139.76	Core	Tonsley	N	Y	N	N
42.60	47.60	139.76	156.17	Core	Tonsley	N	Y	N	N
47.60	52.80	156.17	173.23	Core	Tonsley	N	Y	N	N
52.80	57.80	173.23	189.63	Core	Tonsley	N	Y	N	N
57.80	62.70	189.63	205.71	Core	Tonsley	N	Y	N	N
62.70	67.80	205.71	222.44	Core	Tonsley	N	Y	N	N
67.80	72.40	222.44	237.53	Core	Tonsley	N	Y	N	N
72.40	77.60	237.53	254.59	Core	Tonsley	N	Y	N	N
77.60	82.30	254.59	270.01	Core	Tonsley	N	Y	N	N
82.30	87.20	270.01	286.09	Core	Tonsley	N	Y	N	N
87.20	91.90	286.09	301.51	Core	Tonsley	N	Y	N	N
91.90	96.80	301.51	317.59	Core	Tonsley	N	Y	N	N
96.80	101.50	317.59	333.01	Core	Tonsley	N	Y	N	N
101.50	106.00	333.01	347.77	Core	Tonsley	N	Y	N	N
106.00	110.60	347.77	362.86	Core	Tonsley	N	Y	N	N
110.60	115.50	362.86	378.94	Core	Tonsley	N	Y	N	N
115.50	120.40	378.94	395.01	Core	Tonsley	N	Y	N	N
120.40	125.70	395.01	412.40	Core	Tonsley	N	Y	N	N
125.70	130.80	412.40	429.13	Core	Tonsley	N	Y	N	N
130.80	135.80	429.13	445.54	Core	Tonsley	N	Y	N	N
135.80	140.90	445.54	462.27	Core	Tonsley	N	Y	N	N
140.90	145.80	462.27	478.35	Core	Tonsley	N	Y	N	N
145.80	150.50	478.35	493.77	Core	Tonsley	N	Y	N	N
150.50	155.60	493.77	510.50	Core	Tonsley	N	Y	Y	N
155.60	160.50	510.50	526.57	Core	Tonsley	N	Y	N	N
160.50	165.50	526.57	542.98	Core	Tonsley	N	Y	N	N
165.50	172.50	542.98	565.94	Core	Tonsley	N	Y	N	N
172.50	179.50	565.94	588.91	Core	Tonsley	N	Y	N	N
179.50	187.70	588.91	615.81	Core	Tonsley	N	Y	N	N
187.70	193.90	615.81	636.15	Core	Tonsley	N	Y	N	N
193.90	200.90	636.15	659.12	Core	Tonsley	N	Y	N	N
200.90	207.80	659.12	681.76	Core	Tonsley	N	Y	N	N
207.80	214.90	681.76	705.05	Core	Tonsley	N	Y	N	N
214.90	221.90	705.05	728.02	Core	Tonsley	N	Y	N	N
221.90	228.80	728.02	750.66	Core	Tonsley	N	Y	N	N
228.80	235.70	750.66	773.29	Core	Tonsley	N	Y	N	N
235.70	241.70	773.29	792.98	Core	Tonsley	N	Y	N	N
241.70	249.70	792.98	819.23	Core	Tonsley	N	Y	N	N
249.70	256.80	819.23	842.52	Core	Tonsley	N	Y	N	N
256.80	263.80	842.52	865.49	Core	Tonsley	N	Y	N	N
263.80	270.70	865.49	888.12	Core	Tonsley	N	Y	N	N
270.70	277.80	888.12	911.42	Core	Tonsley	N	Y	N	N
277.80	285.40	911.42	936.35	Core	Tonsley	N	Y	N	N
285.40	291.80	936.35	957.35	Core	Tonsley	N	Y	N	N
291.80	298.90	957.35	980.64	Core	Tonsley	N	Y	N	N
298.90	305.80	980.64	1003.28	Core	Tonsley	N	Y	N	N
305.80	312.80	1003.28	1026.25	Core	Tonsley	N	Y	N	N
312.80	320.00	1026.25	1049.87	Core	Tonsley	N	Y	N	N
320.00	326.70	1049.87	1071.85	Core	Tonsley	N	Y	N	N
326.70	334.40	1071.85	1097.11	Core	Tonsley	N	Y	N	N
334.40	341.50	1097.11	1120.41	Core	Tonsley	N	Y	N	N
341.50	348.50	1120.41	1143.37	Core	Tonsley	N	Y	N	N
348.50	355.60	1143.37	1166.67	Core	Tonsley	N	Y	N	N
355.60	362.60	1166.67	1189.63	Core	Tonsley	N	Y	N	N
362.60	369.60	1189.63	1212.60	Core	Tonsley	N	Y	N	N
369.60	376.60	1212.60	1235.56	Core	Tonsley	N	Y	N	N
376.60	383.70	1235.56	1258.86	Core	Tonsley	N	Y	N	N
383.70	390.70	1258.86	1281.82	Core	Tonsley	N	Y	N	N
390.70	397.70	1281.82	1304.79	Core	Tonsley	N	Y	N	N
397.70	404.80	1304.79	1328.08	Core	Tonsley	N	Y	N	N
404.80	411.90	1328.08	1351.38	Core	Tonsley	N	Y	N	N
411.90	418.90	1351.38	1374.34	Core	Tonsley	N	Y	N	N
418.90	426.10	1374.34	1397.97	Core	Tonsley	N	Y	N	N
426.10	433.10	1397.97	1420.93	Core	Tonsley	N	Y	N	N
433.10	440.10	1420.93	1443.90	Core	Tonsley	N	Y	Y	N
440.10	446.90	1443.90	1466.21	Core	Tonsley	N	Y	N	N
446.90	453.70	1466.21	1488.52	Core	Tonsley	N	Y	Y	N
453.70	460.80	1488.52	1511.81	Core	Tonsley	N	Y	Y	N
460.80	467.80	1511.81	1534.78	Core	Tonsley	N	Y	N	N
467.80	474.90	1534.78	1558.07	Core	Tonsley	N	Y	N	N
474.90	481.80	1558.07	1580.71	Core	Tonsley	N	Y	N	N
481.80	489.00	1580.71	1604.33	Core	Tonsley	N	Y	N	N
489.00	496.00	1604.33	1627.30	Core	Tonsley	N	Y	N	N
496.00	503.00	1627.30	1650.26	Core	Tonsley	N	Y	N	N
503.00	510.00	1650.26	1673.23	Core	Tonsley	N	Y	N	N
510.00	516.90	1673.23	1695.87	Core	Tonsley	N	Y	N	N
516.90	523.80	1695.87	1718.50	Core	Tonsley	N	Y	N	N
523.80	530.90	1718.50	1741.80	Core	Tonsley	N	Y	N	N
530.90	537.80	1741.80	1764.44	Core	Tonsley	N	Y	N	N
537.80	544.80	1764.44	1787.40	Core	Tonsley	N	Y	N	N
544.80	551.80	1787.40	1810.37	Core	Tonsley	N	Y	N	N
551.80	558.90	1810.37	1833.66	Core	Tonsley	N	Y	N	N
558.90	565.80	1833.66	1856.30	Core	Tonsley	N	Y	Y	N
565.80	572.80	1856.30	1879.27	Core	Tonsley	N	Y	N	N
572.80	579.80	1879.27	1902.23	Core	Tonsley	N	Y	N	N
579.80	586.00	1902.23	1922.57	Core	Tonsley	N	Y	N	N

Metres From	Metres To	PDF Summary Images
33	586	16699.pdf (1139 KB)	Request information about NVCL data

Downloads

Download Type:
Spectral Geologist (TSG) data file

TSG viewer is required to view the downloaded TSG files. The following link is a suggested free viewer: https://research.csiro.au/thespectralgeologist/

Enter an email address for tracking the status of the download request.
Email address*:

Scalars

List of Scalars:

Plots

Summary Mineral Plots

Shortwave Infrared

Thermal Infrared

Overview Scalar Plot

Individual Scalar Plots

Scalar Code Here

Binning (Smoothing)
