Drillhole:

129520

Drillhole Name:

YALKALPO 1

Details LocationStratigraphyLithologyPetrophysics Core Details Spectral Scanning Rock Samples Historical Documents References

PACE Drillhole

PACE Round

Representative Drillhole From a Larger Program

Drillhole Program Comments

Map / Unit Number

703600011

Max Drilled Depth (m)

219.76

Max Drilled Date

15/06/1972

Cored Length

214.71

Tenement

Operator

South Australia. Department of Mines and Energy.

Target

Uranium

General Comments

Dip

-90

Azimuth

Class

Mineral Water Well Petroleum Engineering Stratigraphy

Datum

GDA2020

Coordinate Source

(DISUSED) Unknown

MGA Easting

453713.4

MGA Northing

6582491.9

MGA Zone

Long Degrees

140

Long Minutes

Long Seconds

56.553

S Lat Degrees

S Lat Minutes

S Lat Seconds

23.883

Long Degrees Decimal

140.5157092

Lat Degrees Decimal

-30.8899675

Horizontal Accuracy

Map 250K

SH5410 FROME

Map 100K

7036 Thurlooka

Map 50K

SA Geodata - Database Reference

Site No

116951

Metres From

Metres To

Map Symbol

Major Lithology

Minor Lithology

Description

190.8

SAND

Reddish brown sand, medium grained, subrounded; rectangular joint pattern & carbonate cylindroids in upper part

Strat Unit Name

Marree Subgroup

Strat Unit Description

Shale, dark grey, bioturbated, fossiliferous; sandstone, fine to very fine grained, calcareous, clayey.

GIS Code

K--rm

190.8

213.7

K-c

SAND

CLAY (UNDIFF. ORIGIN)

Type section Namba Formation: 32m of interbedded yellowish silt & dark grey or olive clay overlain by 24.6m of burrowed yellowish silt & intraformationally brecciated light olive clay

Strat Unit Name

Cadna-owie Formation

Strat Unit Description

Sandstone, fine-grained, with coarse-grained sandstone beds, and pale grey siltstone, minor conglomerate.

GIS Code

K----c

213.7

216.7

Ehm

SAND

Medium grained moderately sorted angular to subrounded sand, becoming coarser with depth, with polished grains; lignitic

Strat Unit Name

Moorowie Formation

Strat Unit Description

Shale; siltstone; shelf margin oolite; reef limestone.

GIS Code

E-oh-m

216.7

218

Eho

CLAY (UNDIFF. ORIGIN)

SAND

Grey-(green) micaceous clay & silt/fine sand, becoming sandier with depth and more poorly sorted; hard dolomite beds/nodules in upper part, boulder beds in lower part, calcareous micaceous sandstone near base; fossils common

Strat Unit Name

Oraparinna Shale

Strat Unit Description

Shale, calcareous.

GIS Code

E-oh-o

218

219.76

Ehr

LIMESTONE

SHALE

Dense pale grey limestone with wavy dark grey shale lamellae and an interbed of blue-green to white siltstone; trilobites

Strat Unit Name

Mernmerna Formation

Strat Unit Description

Limestone; bioherm complexes. Slope, platform bioherm complexes, distal slope environments; turbidites; nodular wackestone; black laminated lime mud.

GIS Code

E-oh-r

Sample Allowed Hazard

Metres From	Metres To	Feet From	Feet To	Core Group	Library Location	Culled	Core Previously Inspected	Sample Record	Sample Returned to Library
0.00	76.05	0.00	249.51	Cutting	Tonsley	N	Y	Y	Y
3.50	8.50	11.48	27.89	Core	Tonsley	N	Y	N	N
8.50	13.00	27.89	42.65	Core	Tonsley	N	Y	Y	Y
13.00	20.80	42.65	68.24	Core	Tonsley	N	Y	Y	Y
20.80	24.30	68.24	79.72	Core	Tonsley	N	Y	Y	Y
24.30	30.30	79.72	99.41	Core	Tonsley	N	Y	Y	Y
30.30	35.70	99.41	117.13	Core	Tonsley	N	Y	Y	Y
35.70	41.20	117.13	135.17	Core	Tonsley	N	Y	Y	Y
41.20	46.90	135.17	153.87	Core	Tonsley	N	Y	Y	Y
46.90	49.60	153.87	162.73	Core	Tonsley	N	Y	Y	N
49.60	57.50	162.73	188.65	Core	Tonsley	N	Y	Y	Y
57.50	74.20	188.65	243.44	Core	Tonsley	N	Y	Y	Y
74.20	84.00	243.44	275.59	Core	Tonsley	N	Y	Y	Y
84.00	88.90	275.59	291.67	Core	Tonsley	N	Y	Y	N
88.90	94.00	291.67	308.40	Core	Tonsley	N	Y	Y	N
94.00	98.80	308.40	324.15	Core	Tonsley	N	Y	N	N
98.80	103.40	324.15	339.24	Core	Tonsley	N	Y	Y	N
103.40	107.20	339.24	351.71	Core	Tonsley	N	Y	N	N
107.20	112.20	351.71	368.11	Core	Tonsley	N	Y	N	N
112.20	117.10	368.11	384.19	Core	Tonsley	N	Y	Y	N
117.10	121.90	384.19	399.93	Core	Tonsley	N	Y	Y	Y
121.90	126.80	399.93	416.01	Core	Tonsley	N	Y	N	N
126.80	131.40	416.01	431.10	Core	Tonsley	N	Y	N	N
131.40	136.30	431.10	447.18	Core	Tonsley	N	Y	Y	N
136.40	141.40	447.51	463.91	Core	Tonsley	N	Y	N	N
141.40	146.30	463.91	479.99	Core	Tonsley	N	Y	N	N
146.30	151.10	479.99	495.73	Core	Tonsley	N	Y	Y	N
151.10	155.90	495.73	511.48	Core	Tonsley	N	Y	Y	N
155.90	161.00	511.48	528.22	Core	Tonsley	N	Y	Y	N
161.00	166.00	528.22	544.62	Core	Tonsley	N	Y	N	N
166.00	171.00	544.62	561.02	Core	Tonsley	N	Y	Y	Y
171.00	176.00	561.02	577.43	Core	Tonsley	N	Y	Y	N
176.00	180.90	577.43	593.50	Core	Tonsley	N	Y	Y	N
180.90	186.40	593.50	611.55	Core	Tonsley	N	Y	N	N
186.40	191.10	611.55	626.97	Core	Tonsley	N	Y	Y	Y
191.10	200.20	626.97	656.82	Core	Tonsley	N	Y	Y	Y
200.20	205.30	656.82	673.56	Core	Tonsley	N	Y	Y	N
205.30	210.90	673.56	691.93	Core	Tonsley	N	Y	Y	N
210.90	219.70	691.93	720.80	Core	Tonsley	N	Y	Y	N

Metres From	Metres To	PDF Summary Images
3.5	219.7	129520.pdf (1423 KB)	Request information about NVCL data

Downloads

Download Type:
Spectral Geologist (TSG) data file

TSG viewer is required to view the downloaded TSG files. The following link is a suggested free viewer: www.thespectralgeologist.com

Enter an email address for tracking the status of the download request.
Email address*:

Scalars

List of Scalars:

Plots

Summary Mineral Plots

Shortwave Infrared

Thermal Infrared

Scanned Core Imagery

Core Library Image

Sample Number	Depth From	Depth To	Sample Source	Collected By	Date Collected
621217	12.2		Drill core	ROWETT, A.I.	12/01/1993
621218	15.1		Drill core	ROWETT, A.I.	12/01/1993
621219	27.39		Drill core	ROWETT, A.I.	12/01/1993
621220	27.6		Drill core	ROWETT, A.I.	12/01/1993
1789090	28.4	28.42	Drill core	FABRIS, A.J.	10/09/2010
621221	29.1		Drill core	ROWETT, A.I.	12/01/1993
621222	29.3		Drill core	ROWETT, A.I.	12/01/1993
43453	29.4		Drill core	CALLEN, R.A.	20/06/1972
1789091	44.12	44.14	Drill core	FABRIS, A.J.	10/09/2010
43460	44.68		Drill core	CALLEN, R.A.	1/10/1972
43452	45.02		Drill core	CALLEN, R.A.	20/06/1972
1830802	48.5	48.51	Drill core	MICHAELSEN, B.	15/02/2011
43461	51			CALLEN, R.A.	11/07/1983
1830803	57.06	57.08	Drill core	MICHAELSEN, B.	15/02/2011
43462	71.97			CALLEN, R.A.	11/07/1983
43463	73.14			CALLEN, R.A.	11/07/1983
621223	73.8		Drill cuttings	ALLEY, N.F.
1789092	74		Drill core	FABRIS, A.J.	10/09/2010
43451	74.18		Drill core	CALLEN, R.A.	20/06/1972
59610	74.36		Drill cuttings	CALLEN, R.A.	11/07/1983
621241	79.4		Drill cuttings	ALLEY, N.F.
43450	86.25		Drill core	CALLEN, R.A.	20/06/1972
1789093	88	88.02	Drill core	FABRIS, A.J.	10/09/2010
43449	89		Drill core	CALLEN, R.A.	20/06/1972
43448	99.5		Drill core	CALLEN, R.A.	20/06/1972
43447	114.5		Drill core	CALLEN, R.A.	20/06/1972
43446	134		Drill core	CALLEN, R.A.	20/06/1972
43445	148.3		Drill core	CALLEN, R.A.	20/06/1972
43444	155.2		Drill core	CALLEN, R.A.	20/06/1972
43443	156.52		Drill core	CALLEN, R.A.	20/06/1972
43442	172.21		Drill core	CALLEN, R.A.	20/06/1972
43441	180.71		Drill core	CALLEN, R.A.	20/06/1972
43440	190.72		Drill core	CALLEN, R.A.	20/06/1972
43439	195.23		Drill core	CALLEN, R.A.	6/07/1983
43438	202.3		Drill core	CALLEN, R.A.	20/06/1972
43437	210.64		Drill core	CALLEN, R.A.	6/07/1983
2091432	211.46		Drill core	HARRIS, W.K.
2133323	213.3	213.9	Drill core	EXTERNAL - REFER CORE INSPECTION	11/08/2015
157141	213.95		Drill core	GRAVESTOCK, D.I.
43436	214.12		Drill core	CALLEN, R.A.	6/07/1983
157142	214.15		Drill core	GRAVESTOCK, D.I.
43464	214.38		Drill core	CALLEN, R.A.
162398	219.5	219.7	Drill core	GRAVESTOCK, D.I.
43379		66.05	Drill core	CALLEN, R.A.	19/03/1973
43380		62.16	Drill core	CALLEN, R.A.	19/03/1973
43381		68.45	Drill core	CALLEN, R.A.	19/03/1973
43382		58	Drill core	CALLEN, R.A.	19/03/1973
43383		73.4	Drill core	CALLEN, R.A.	19/03/1973
43384		75.14	Drill core	CALLEN, R.A.	19/03/1973
43390		30.3	Drill core	CALLEN, R.A.	19/03/1973
43391		25.9	Drill core	CALLEN, R.A.	19/03/1973
43392		28.43	Drill core	CALLEN, R.A.	19/03/1973
43393		9.04	Drill core	CALLEN, R.A.	19/03/1973
43394		12.63	Drill core	CALLEN, R.A.	19/03/1973
43395		16.65	Drill core	CALLEN, R.A.	19/03/1973
43396		21.2	Drill core	CALLEN, R.A.	19/03/1973
43397		38.01	Drill core	CALLEN, R.A.	19/03/1973
43398		45.62	Drill core	CALLEN, R.A.	19/03/1973
43399		44.46	Drill core	CALLEN, R.A.	19/03/1973
43400		54.41	Drill core	CALLEN, R.A.	19/03/1973
43401		57.75	Drill core	CALLEN, R.A.	19/03/1973
43402		119.48	Drill core	CALLEN, R.A.	19/03/1973
43403		187.15	Drill core	CALLEN, R.A.	19/03/1973
43404		33.4	Drill core	CALLEN, R.A.	19/03/1973
43405		199.94	Drill core	CALLEN, R.A.	19/03/1973
43424		81.43	Drill core	CALLEN, R.A.	19/03/1973
43425		167.49	Drill core	CALLEN, R.A.	19/03/1973
621224			Drill cuttings	PAL
621225			Drill cuttings	PAL
621226			Drill cuttings	PAL
621227			Drill cuttings	PAL
621228			Drill cuttings	PAL
621229			Drill cuttings	PAL
621230			Drill cuttings	PAL
621231			Drill cuttings	PAL
621232			Drill cuttings	PAL
621233			Drill cuttings	PAL
621234			Drill cuttings	PAL
621235			Drill cuttings	PAL
621236			Drill cuttings	PAL
621237			Drill cuttings	PAL
621238			Drill cuttings	PAL
621239			Drill cuttings	PAL
621240			Drill cuttings	PAL
43378		59.02	Drill core	CALLEN, R.A.	19/03/1973
43389		58.18	Drill core	CALLEN, R.A.	4/01/1973
43388		58.11	Drill core	CALLEN, R.A.	4/01/1973
43387		58.21	Drill core	CALLEN, R.A.	4/01/1973
621242			Drill cuttings	PAL
43385		65.17	Drill core	CALLEN, R.A.	20/12/1972
43386		14.8	Drill core	CALLEN, R.A.	20/12/1972

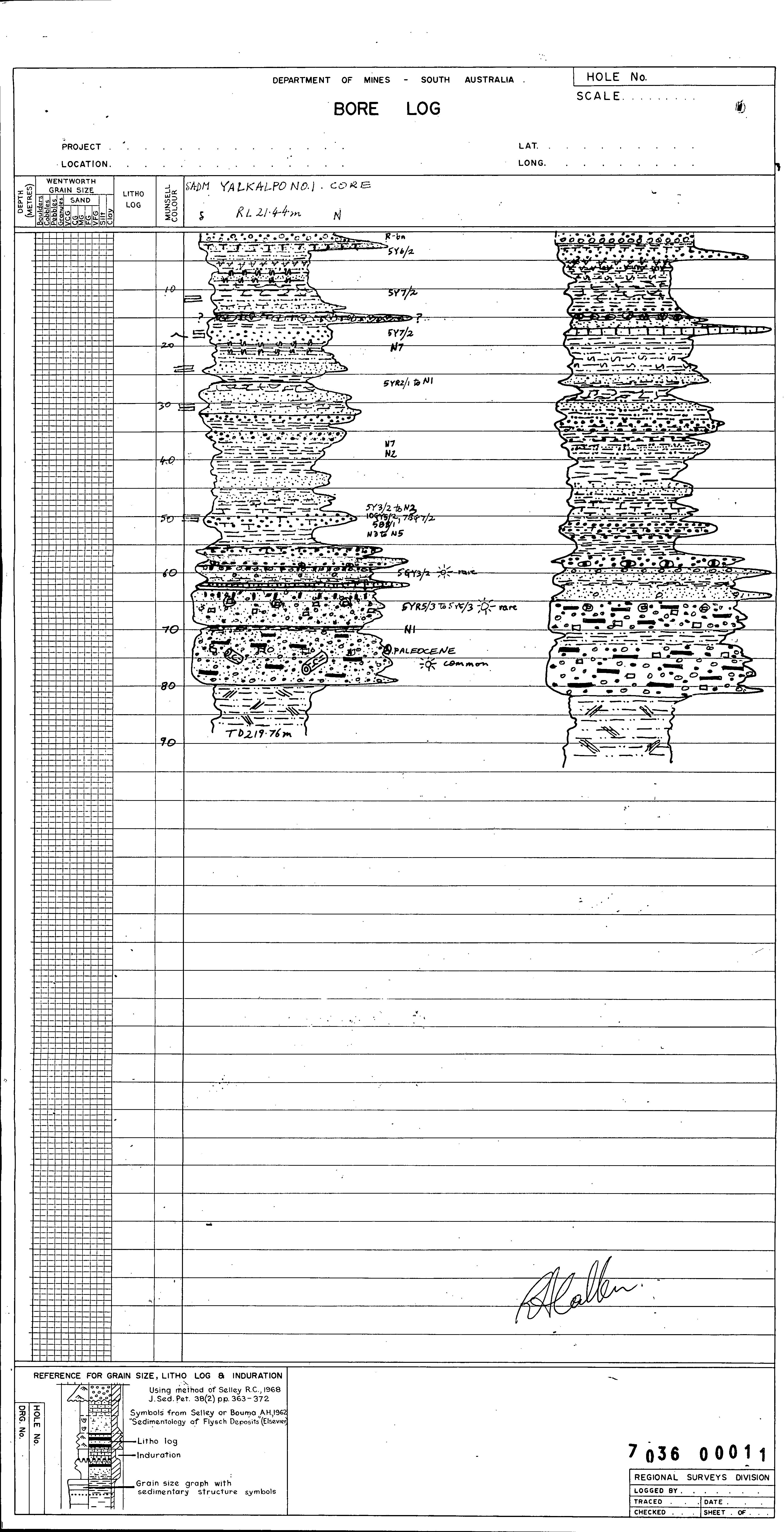

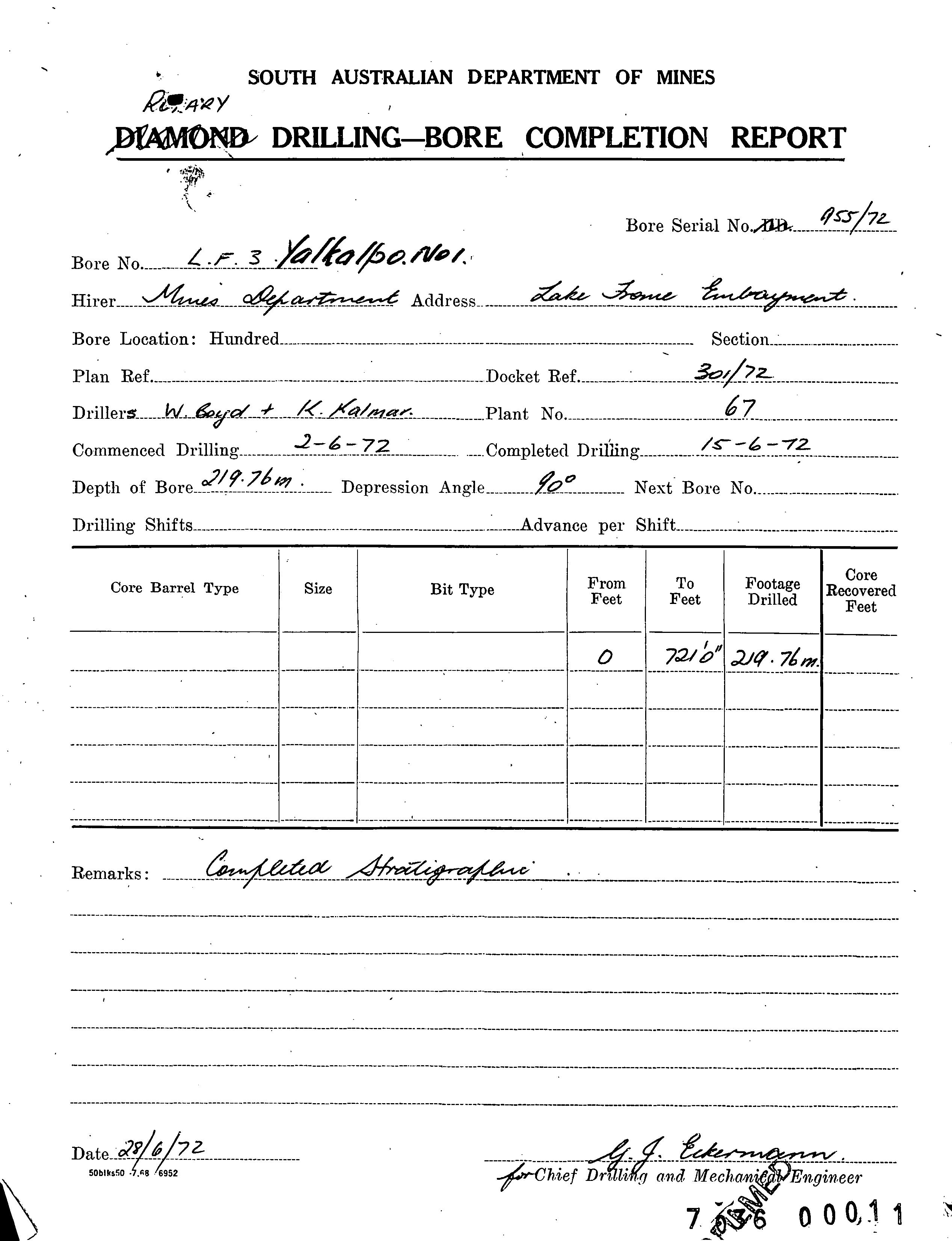

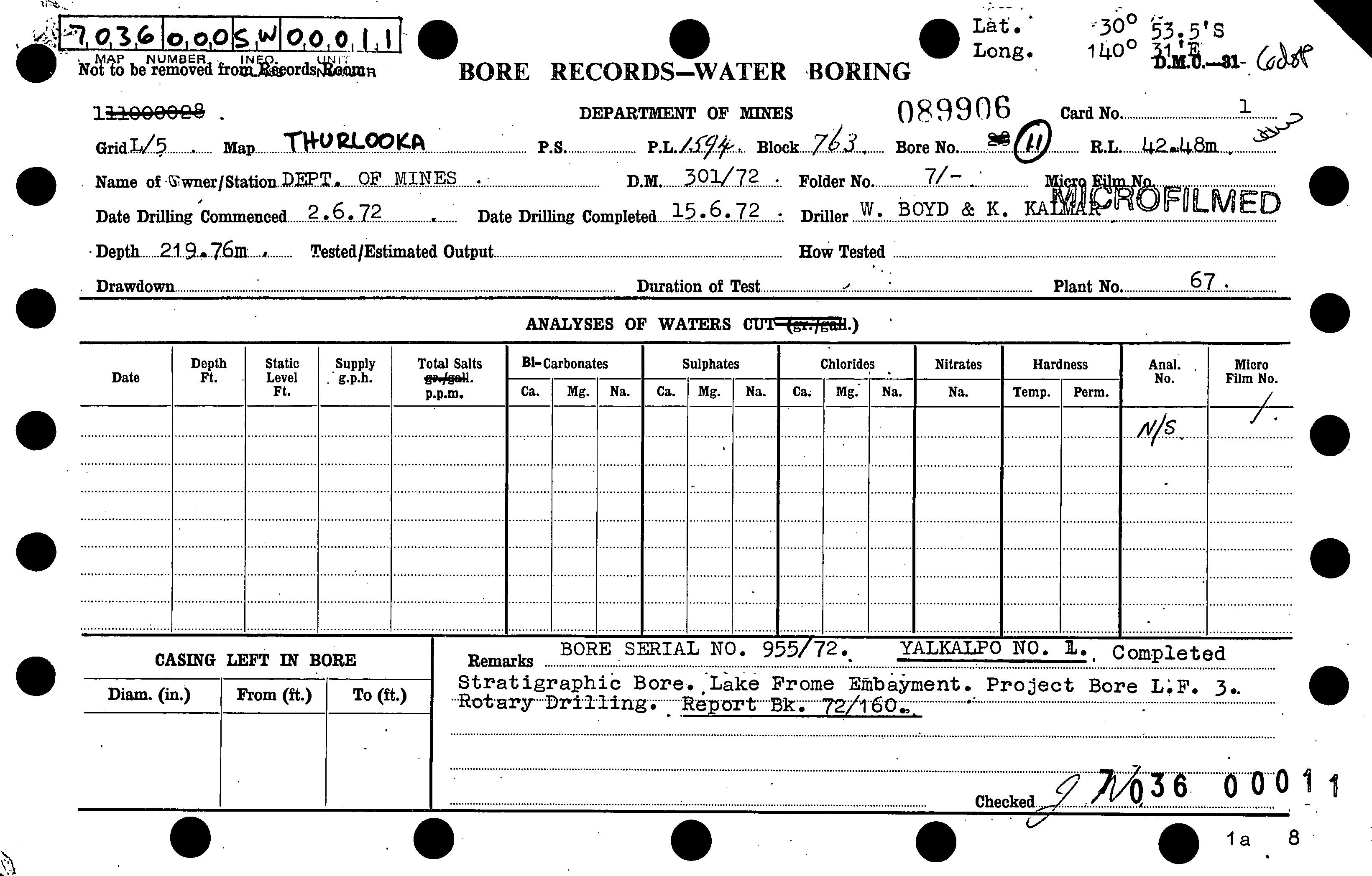

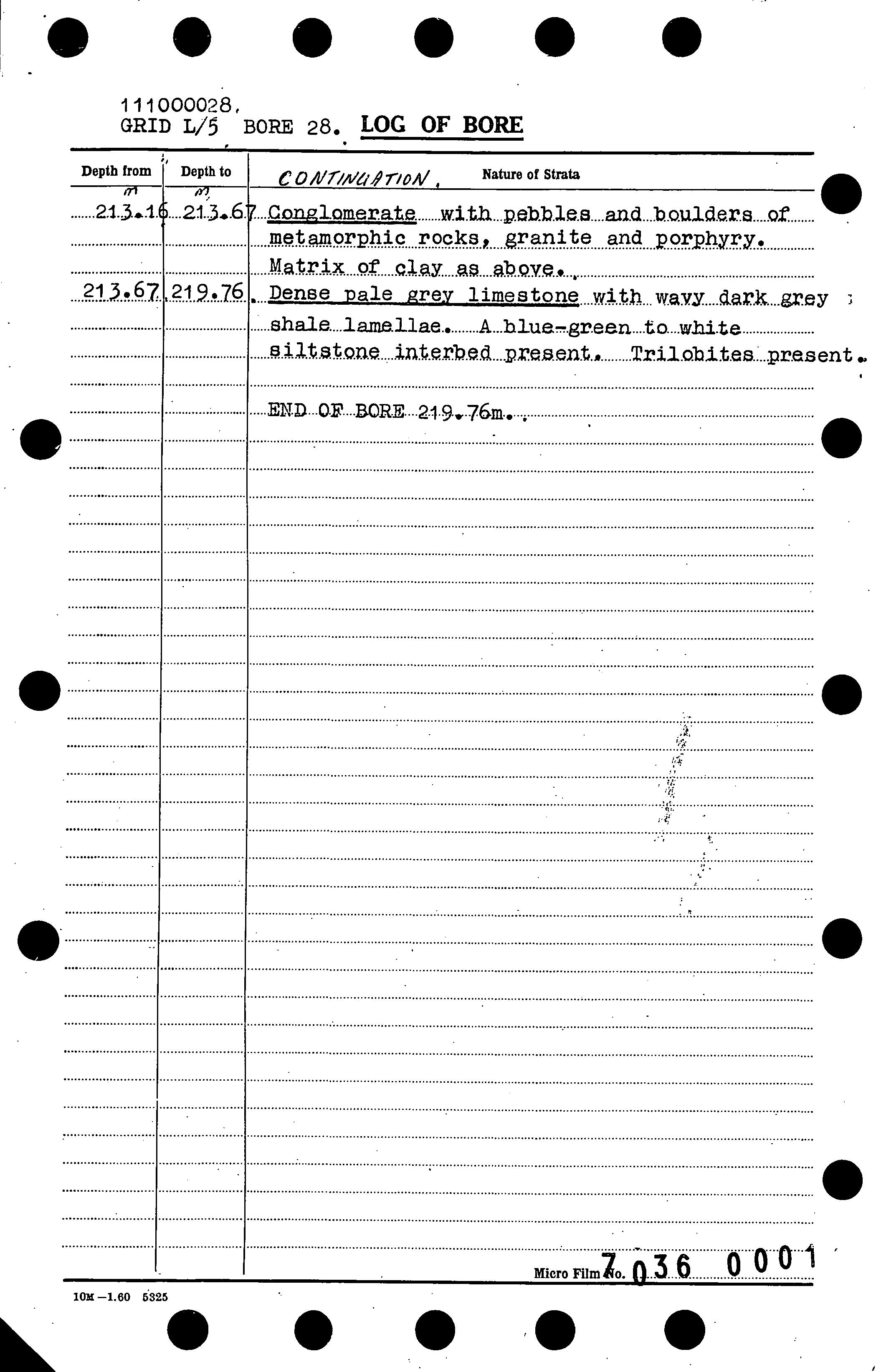

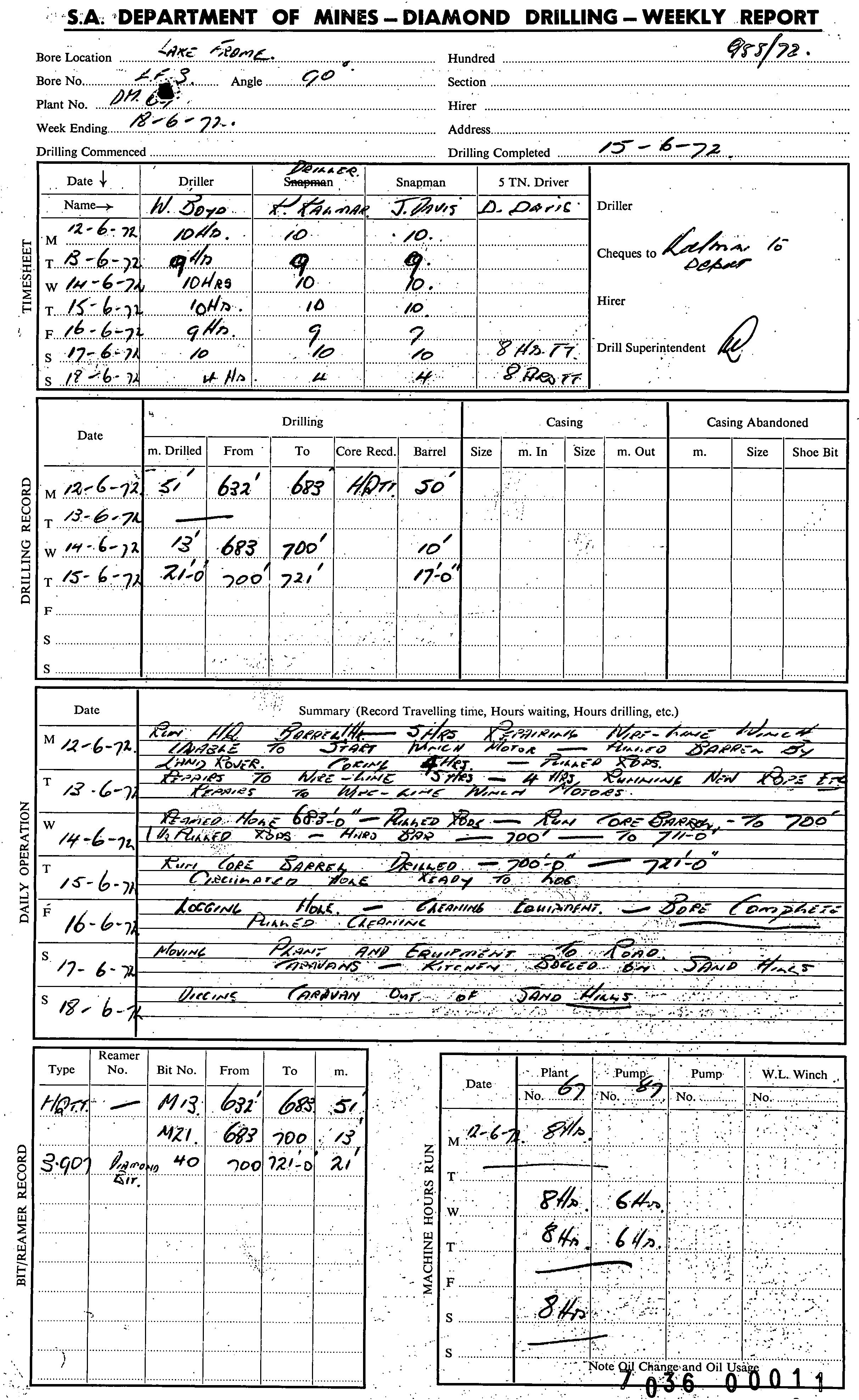

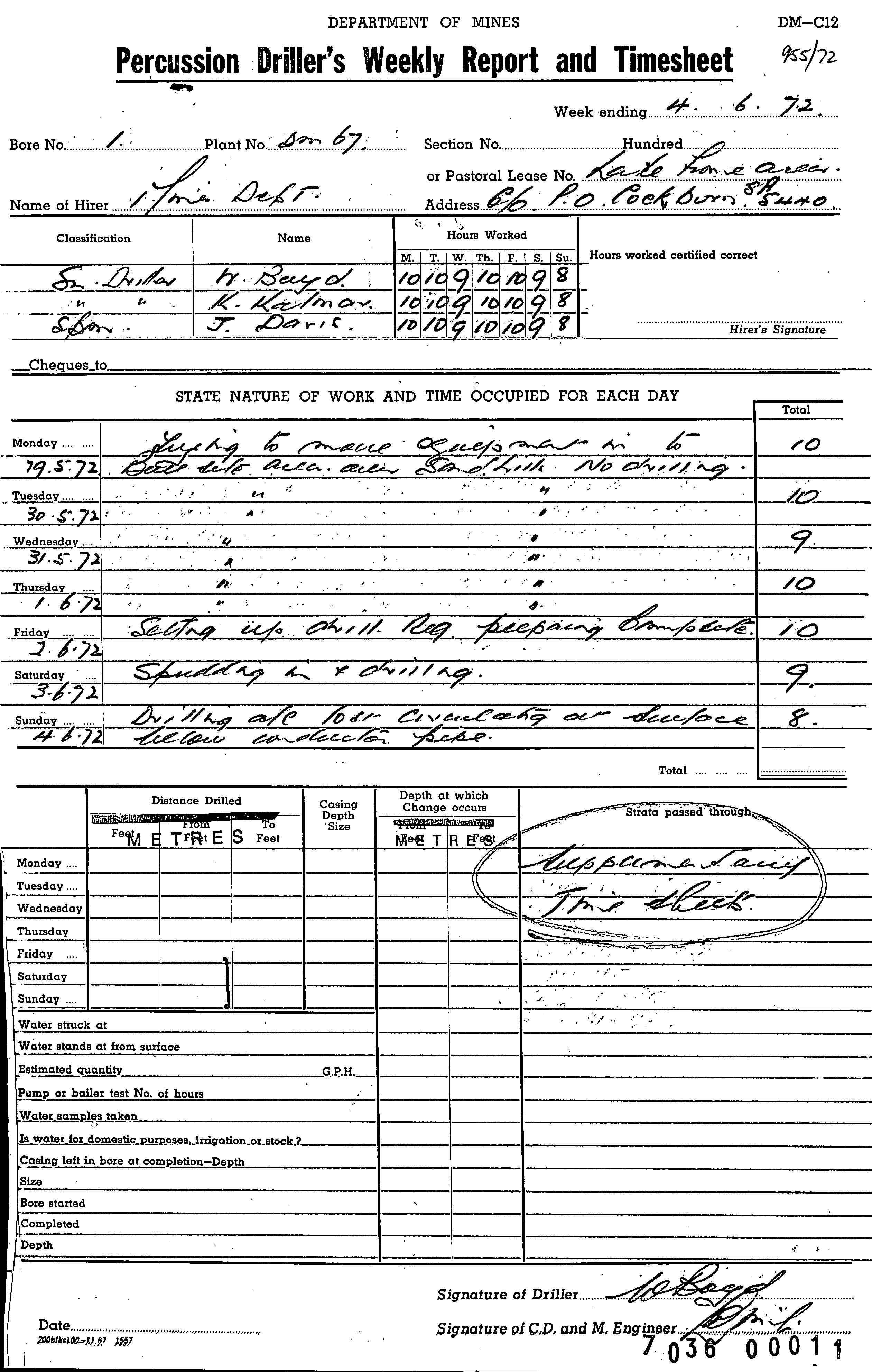

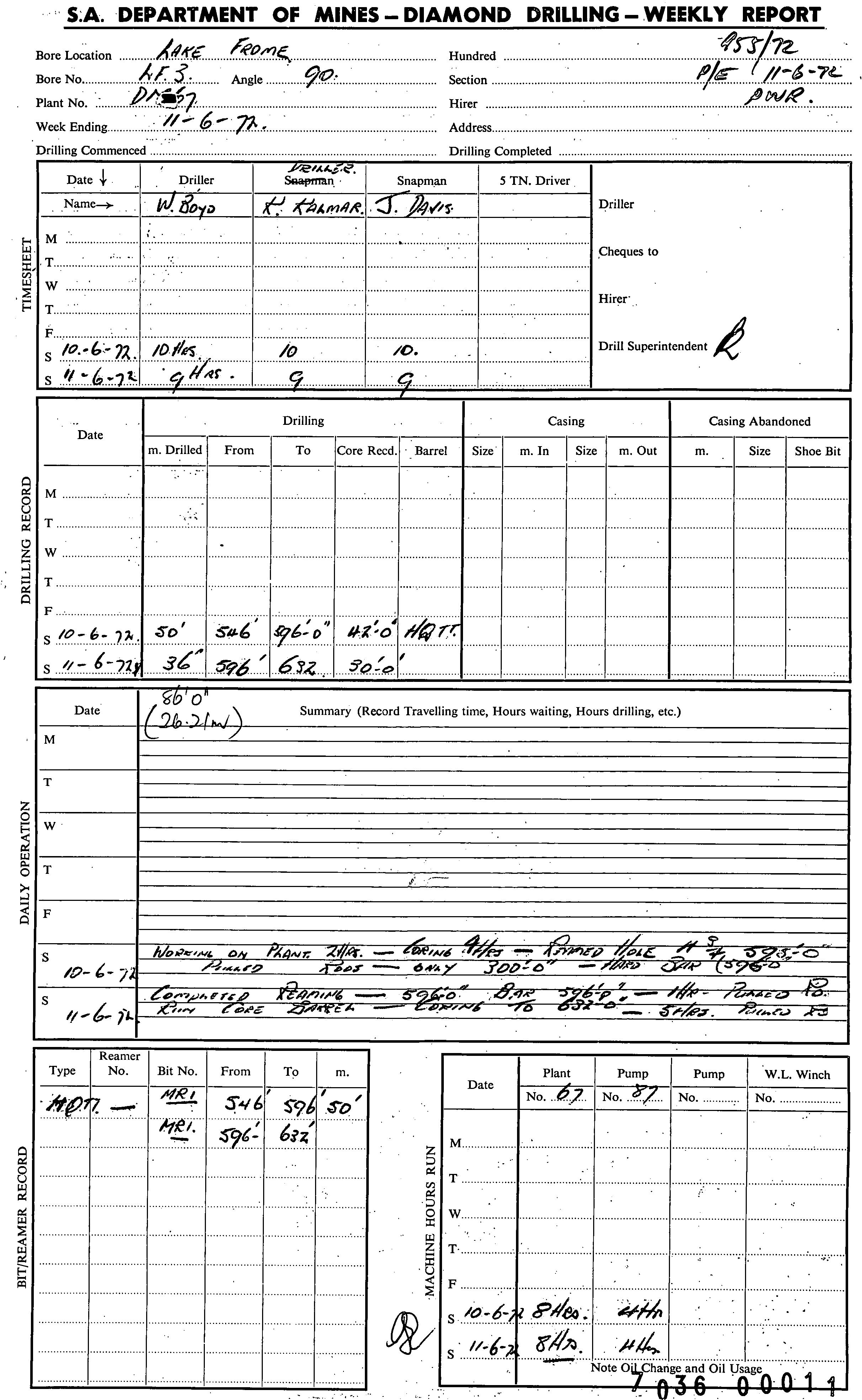

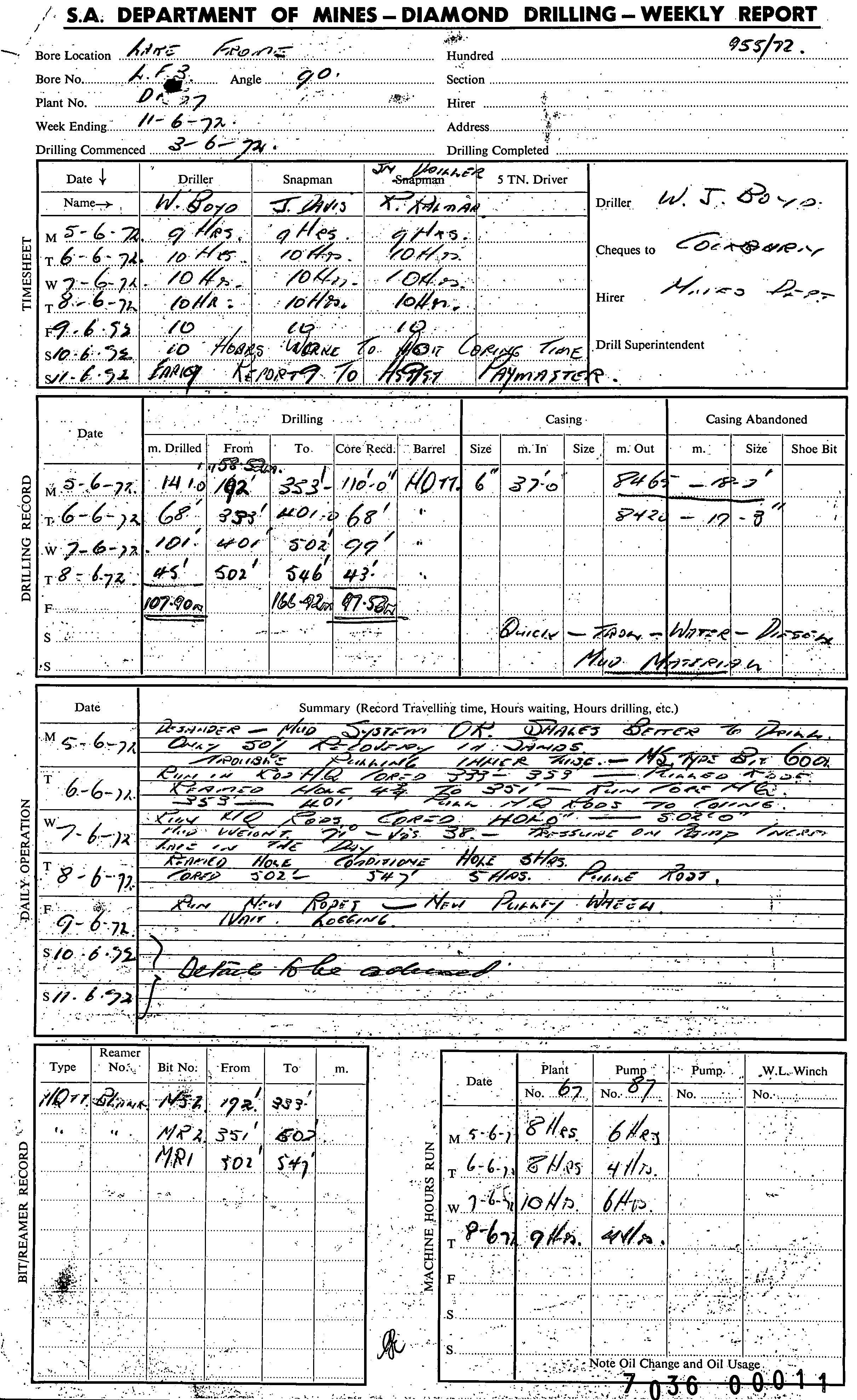

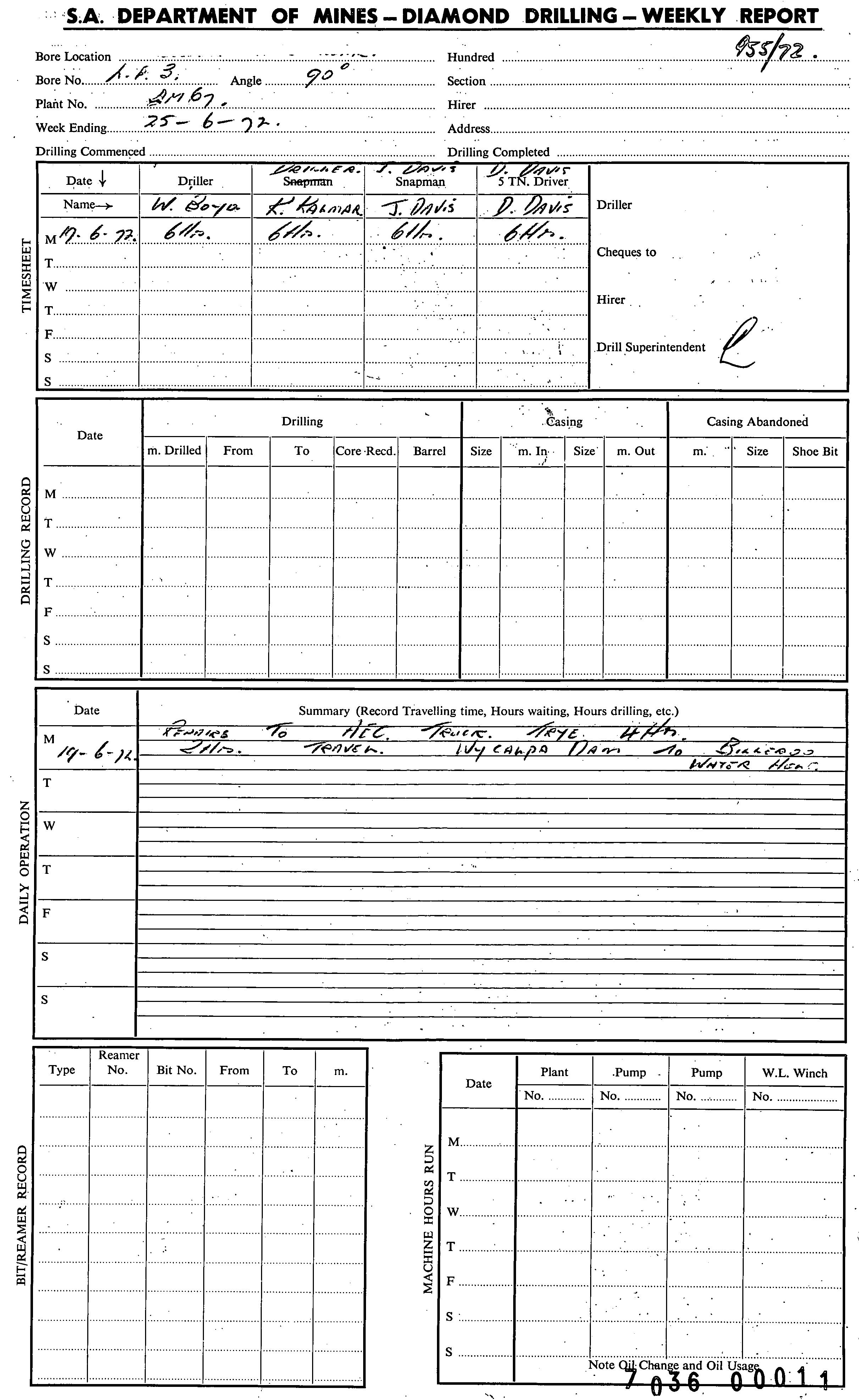

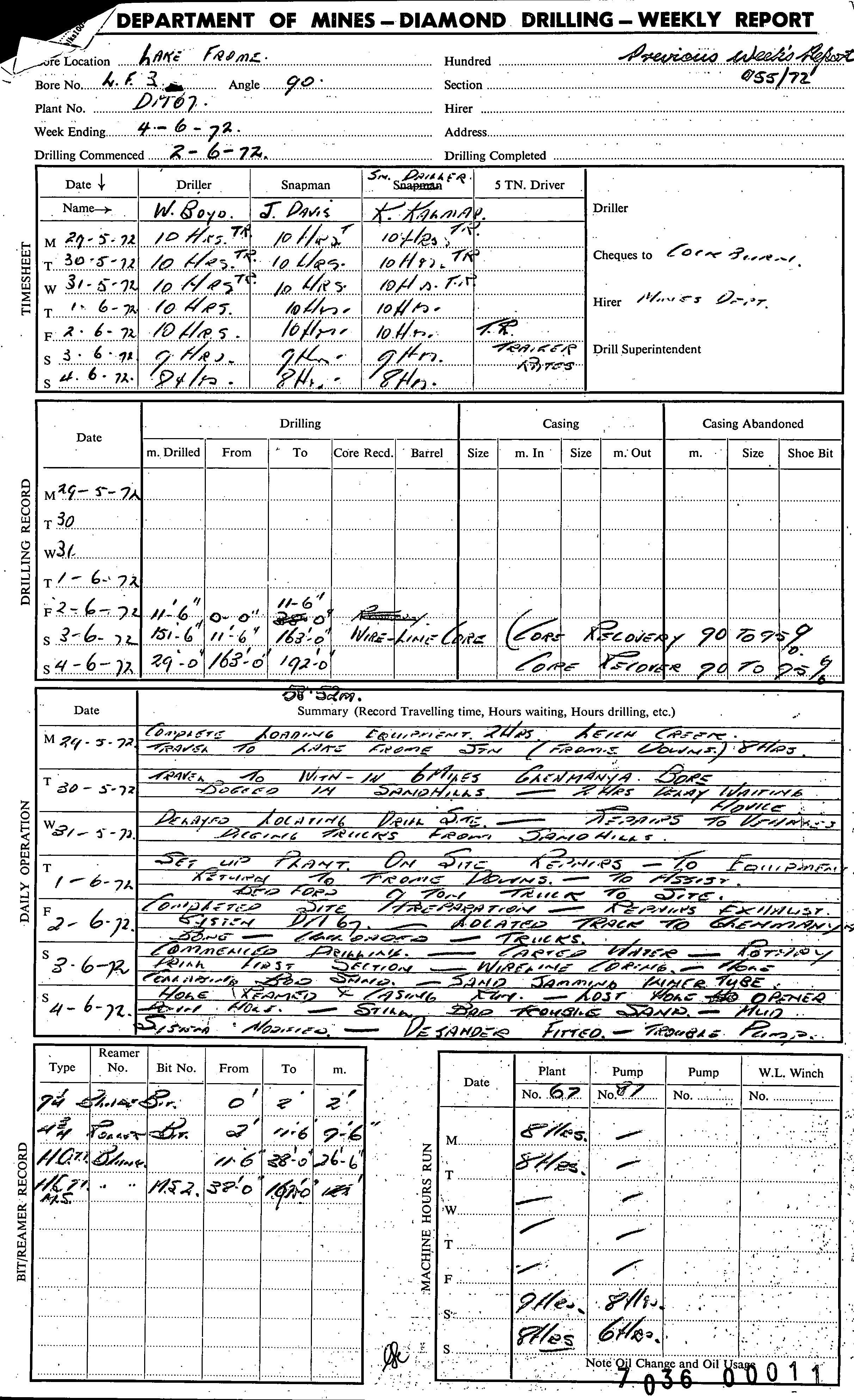

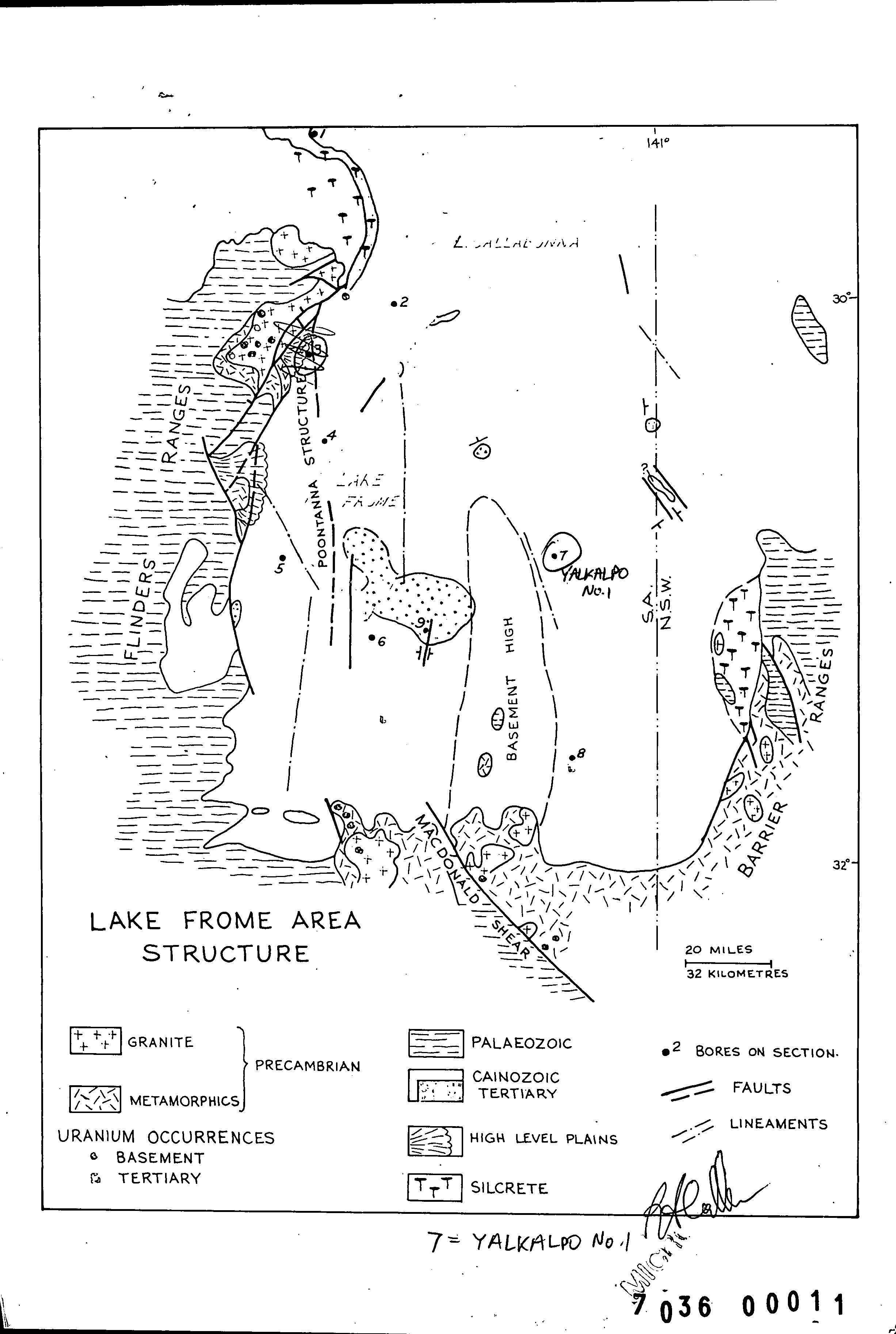

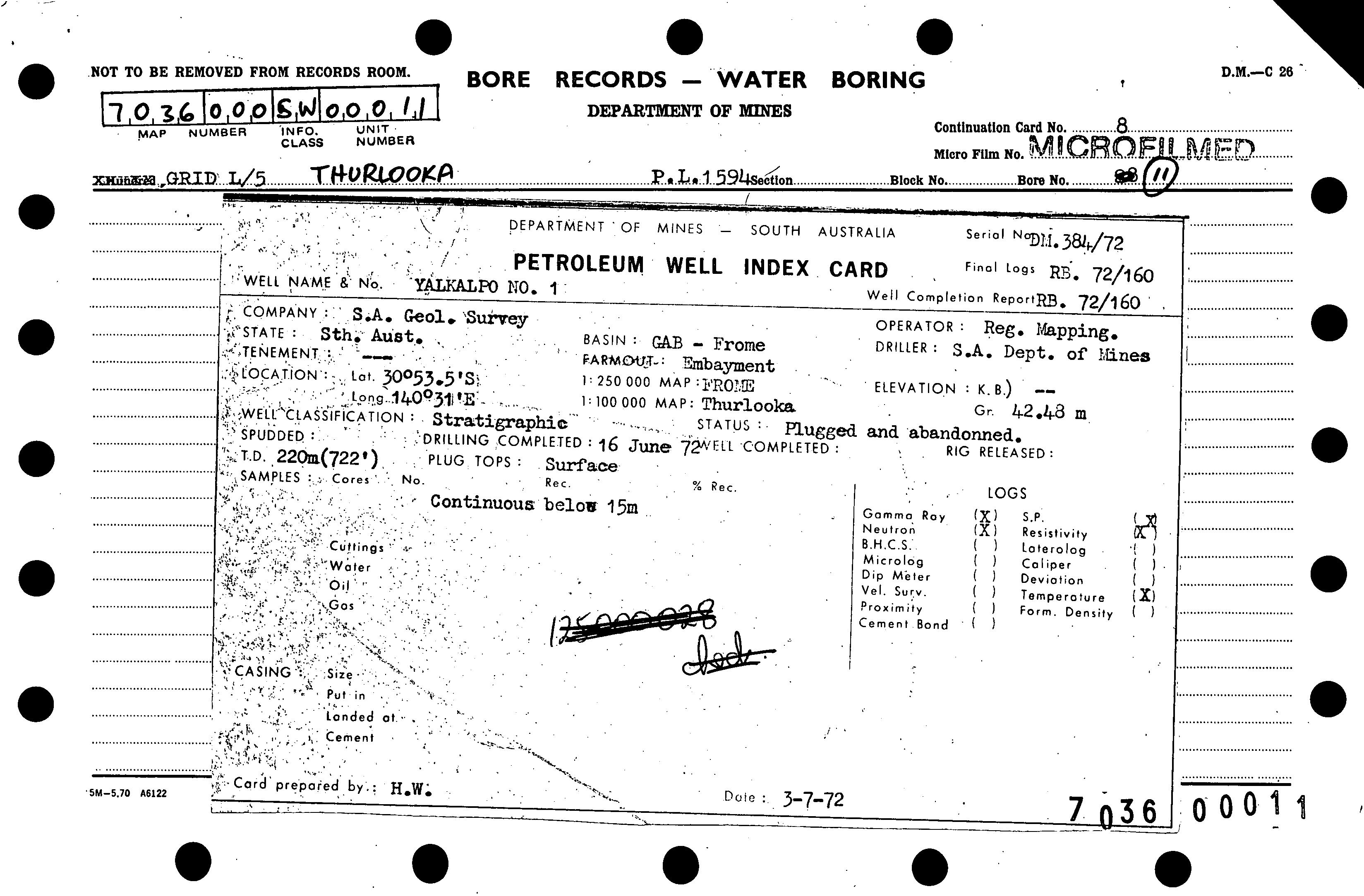

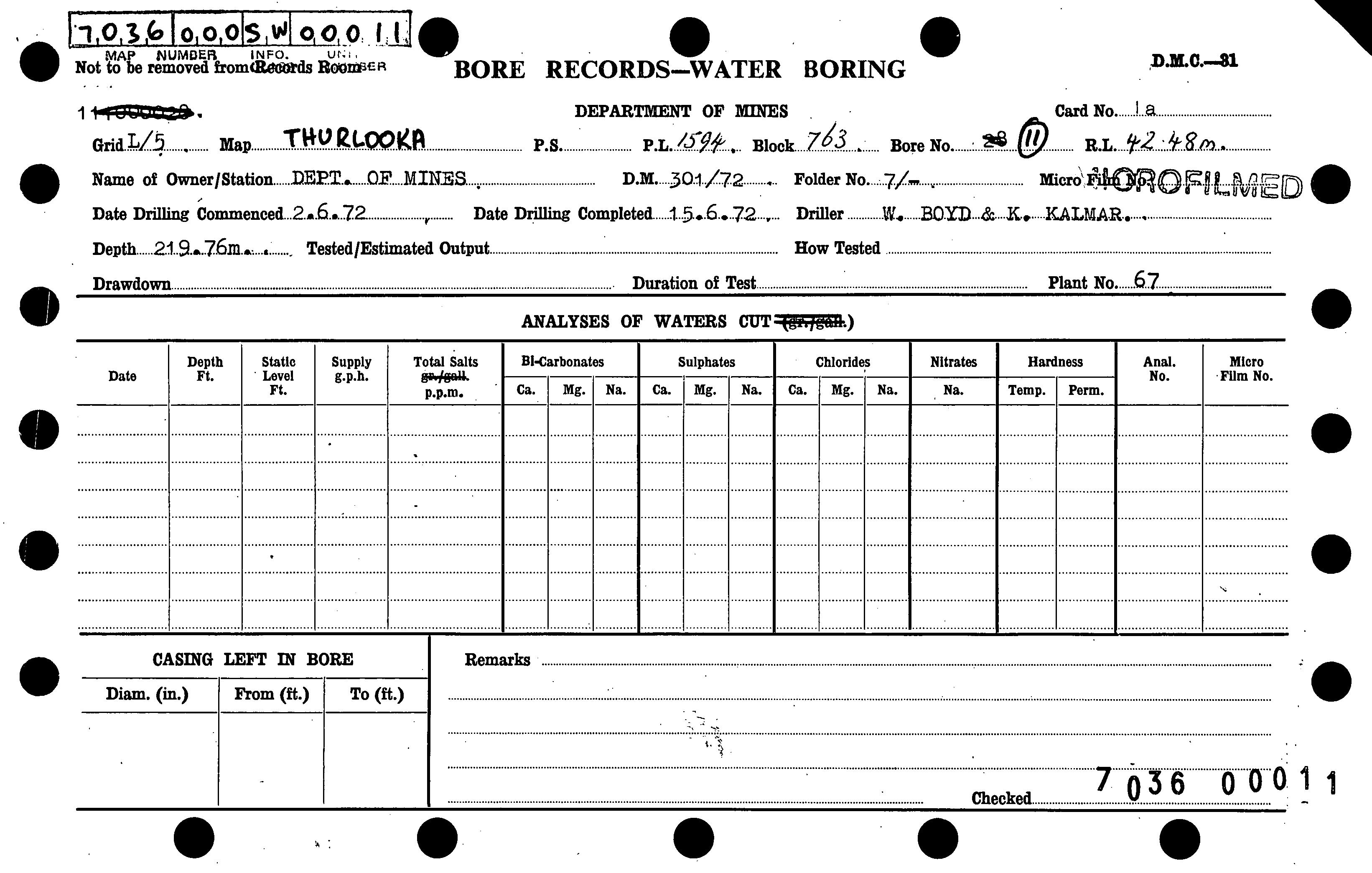

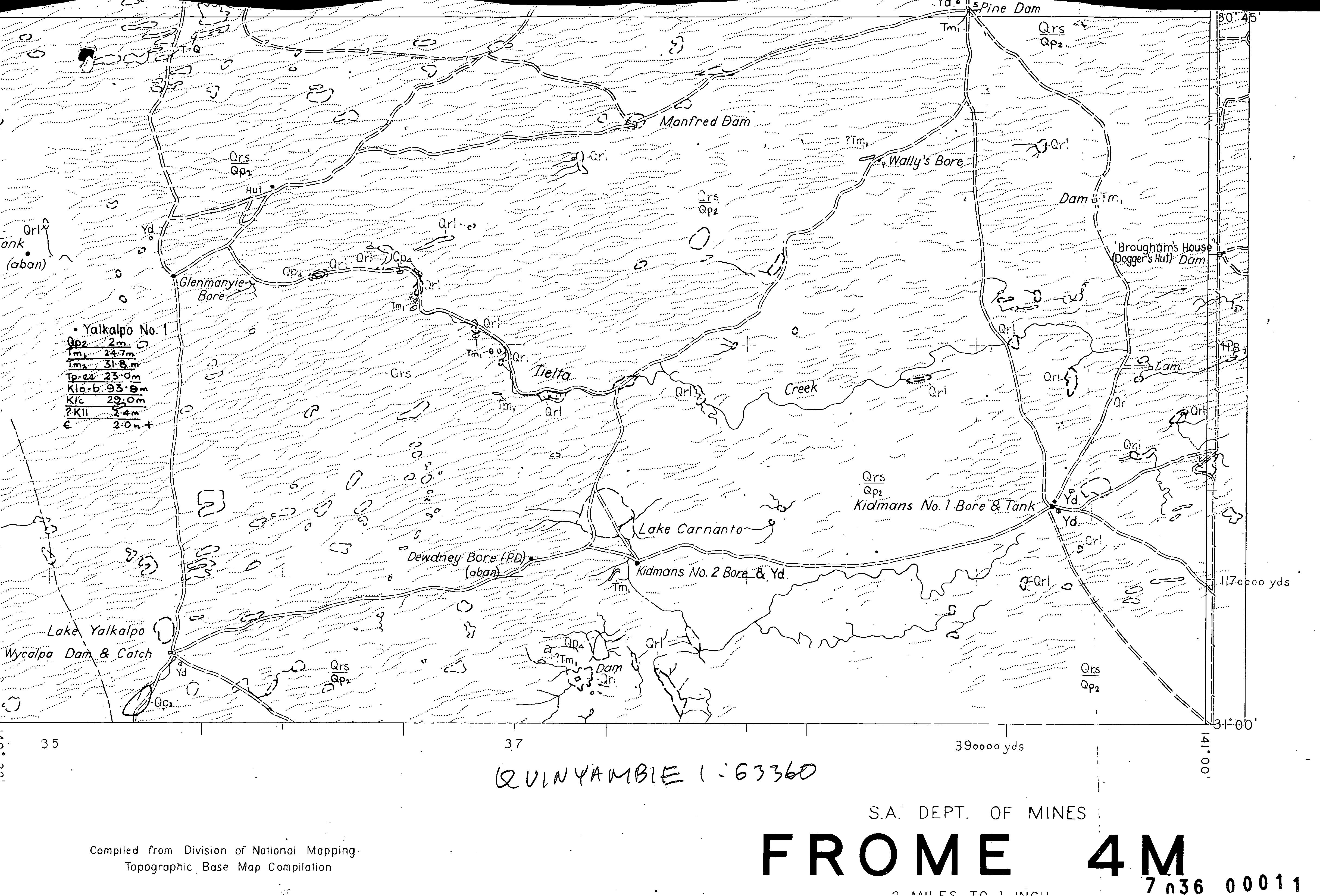

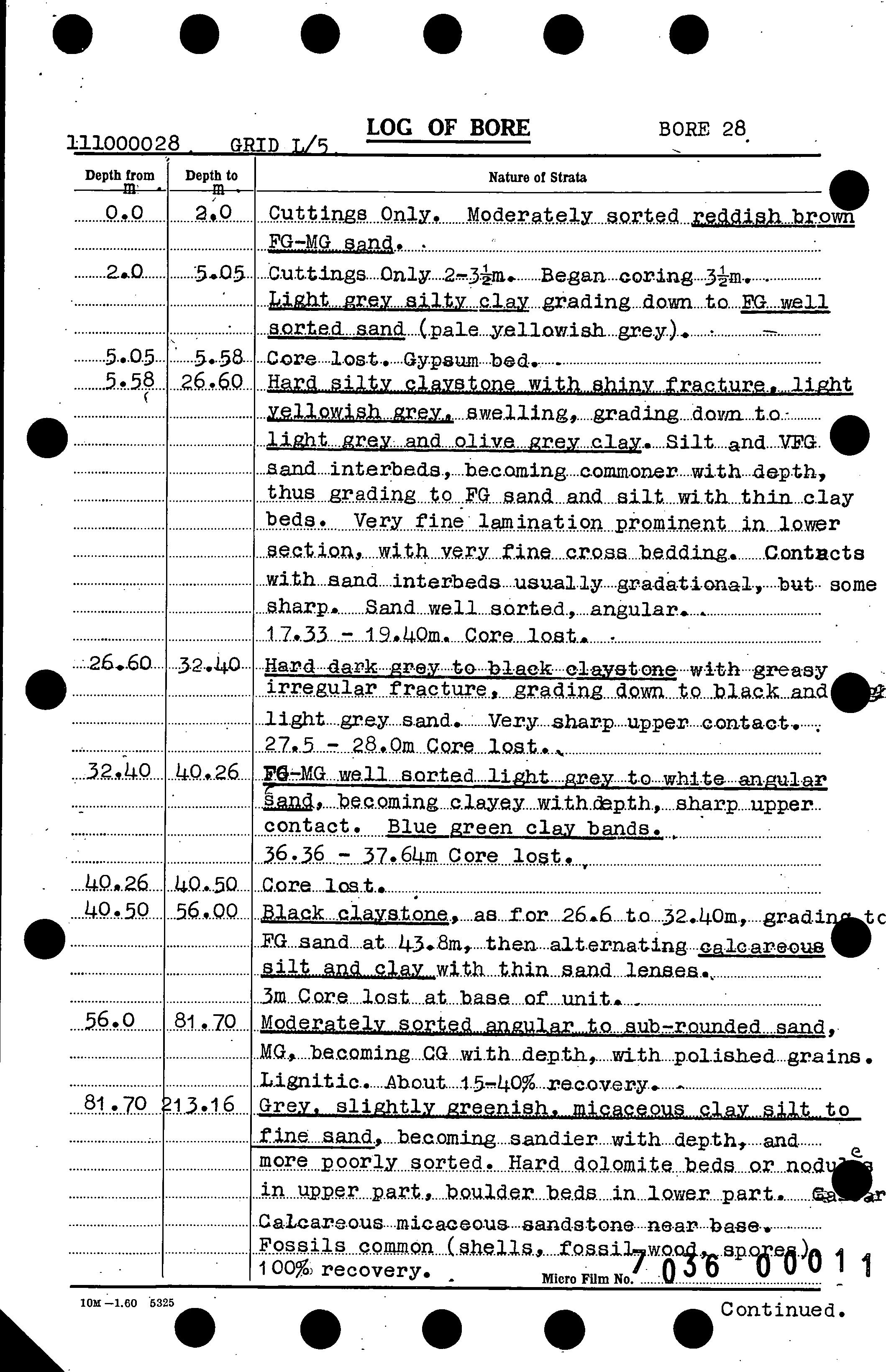

Document	Document ID	Information Type	Document Details	Reports Database
Envelope	03462	Geological Log Ref.	Bubner, G.J.;Buckle, P.A. Progress and final reports on Lake Coontayunta EL 437 SA. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
Other	TR.R.SOC.	Geological Log Ref.

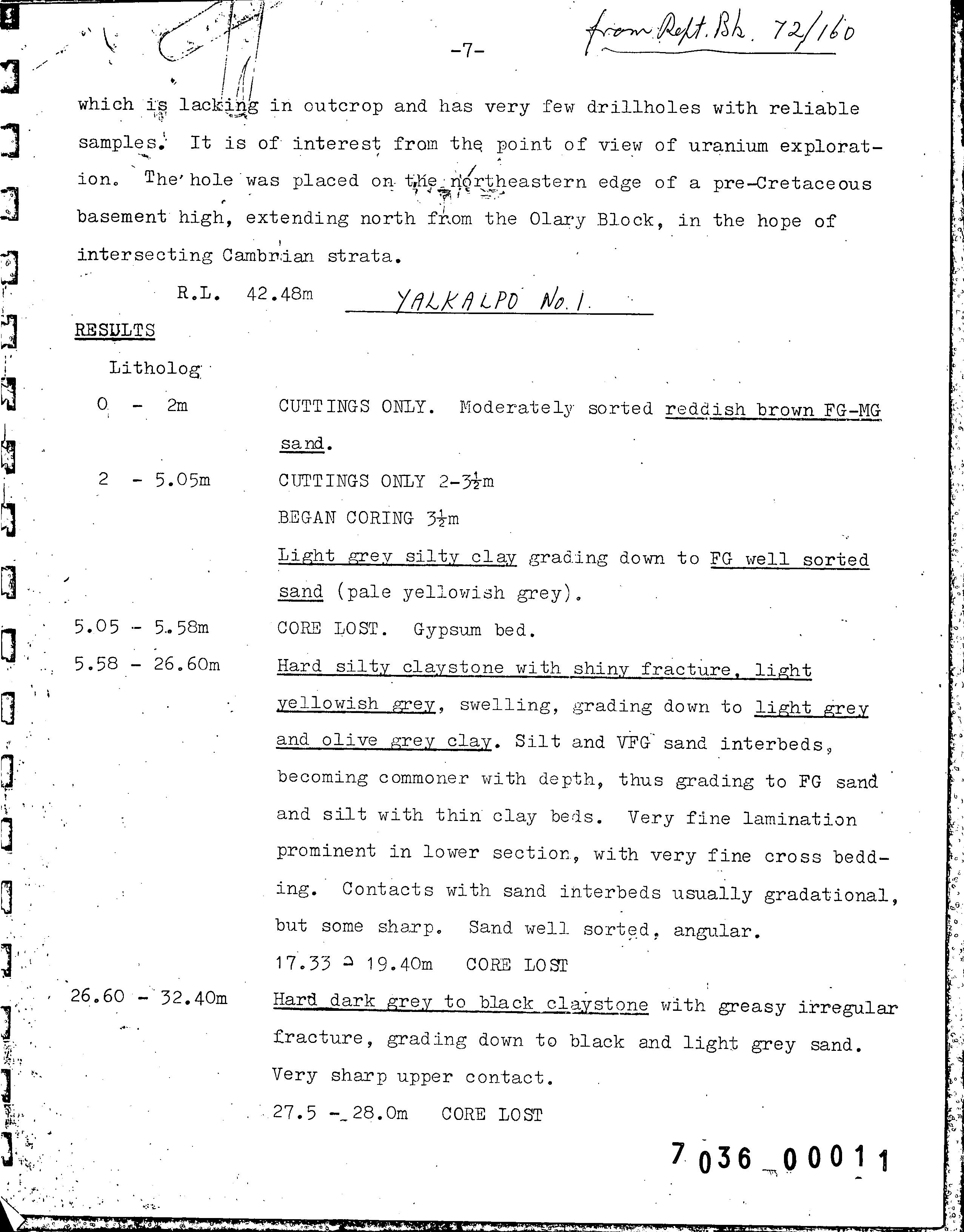

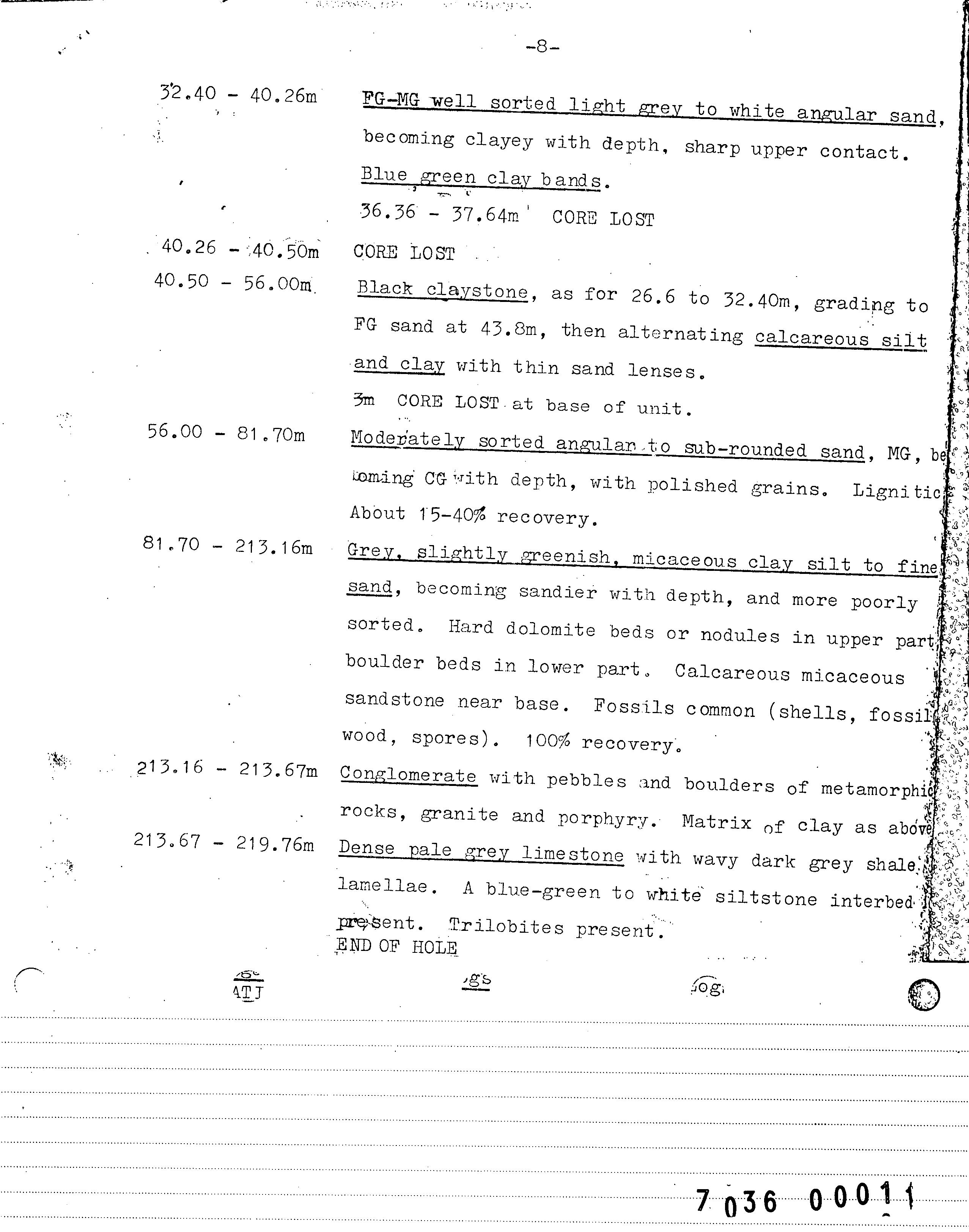

Report Book	72/00160	Geological Log Ref.	Callen, R.A. Frome Embayment stratigraphic drilling project. Preliminary report on SA Department of Mines Wooltana no. 1, Yalkalpo no. 1 and Wertaloona no. 1 stratigraphic bores. South Australia. Department of Mines. Report Book 1972	SAMREF
Report Book	73/00089	Geological Log Ref.
Report Book	80/00116	Geological Log Ref.	Truelove, A.J. Mesozoic stratigraphy of the Frome Embayment. South Australia. Department of Mines and Energy. Report Book 1980	SAMREF
Report Book	72/00160	Geophysical Log(s)	Callen, R.A. Frome Embayment stratigraphic drilling project. Preliminary report on SA Department of Mines Wooltana no. 1, Yalkalpo no. 1 and Wertaloona no. 1 stratigraphic bores. South Australia. Department of Mines. Report Book 1972	SAMREF
Report Book	72/00160	Master Ref.	Callen, R.A. Frome Embayment stratigraphic drilling project. Preliminary report on SA Department of Mines Wooltana no. 1, Yalkalpo no. 1 and Wertaloona no. 1 stratigraphic bores. South Australia. Department of Mines. Report Book 1972	SAMREF
Other	TR.R.SOC.	Palaeontology Ref.
Envelope	02327	Geological Log Ref.	Flesher, C.J. Progress reports for Exploration Licence area 90, Lake Yalkalpo, SA. South Australia. Department of Primary Industries and Resources. Open file Envelope 1974	SAMREF
