Drillhole:

126805

Drillhole Name:

MBT-1

Details LocationStratigraphyLithologyPetrophysics Core Details Spectral Scanning Rock Samples Historical Documents References

Representative Drillhole From a Larger Program

Drillhole Program Comments

Map / Unit Number

702800484

Max Drilled Depth (m)

635.7

Max Drilled Date

31/05/1990

Cored Length

222

Tenement

Operator

South Australia. Department of Mines and Energy.

Target

Gold, Base Metals, Platinoids

General Comments

PEEBINGA NO 1Sample method = Part Cored.

Dip

-90

Azimuth

Class

Mineral Water Well Petroleum Engineering Stratigraphy

Datum

GDA2020

Coordinate Source

MGA Easting

489240.59

MGA Northing

6129740.56

MGA Zone

Long Degrees

140

Long Minutes

Long Seconds

55.657

S Lat Degrees

S Lat Minutes

S Lat Seconds

29.43

Long Degrees Decimal

140.8821269

Lat Degrees Decimal

-34.9748416

Horizontal Accuracy

Map 250K

SI5410 RENMARK

Map 100K

7028 Paruna

Map 50K

SA Geodata - Database Reference

Site No

114692

Metres From

Metres To

Map Symbol

Major Lithology

Minor Lithology

Description

Tpl

SAND

GRAVEL

Sand, fine-coarse grained, slightly clayey towards top, gravelly with abundant shell fragments below 46m, mottled dark orange.

Strat Unit Name

Loxton Sand

Strat Unit Description

Sand, glauconitic, micaceous and shelly gravel; Coarse-grained sand and fine gravel, and calcareous micaceous, medium to coarse-grained sandstone. Shallow marine, beach, aeolian, lacustrine and fluvial.

GIS Code

p----l

Tmpb

SILT

SAND

Silt, very shelly & sandy, slightly glauconitic, pale grey/green.

Strat Unit Name

Bookpurnong Formation

Strat Unit Description

Marl; silty clay; minor fine-grained sand, glauconitic. Shallow marine.

GIS Code

mp---b

196

LIMESTONE

SILT

Limestone, silty, mainly semi-consolidated, glauconitic, fosssiliferous, pale grey-off white.

Strat Unit Name

Murray Group

Strat Unit Description

Limestone, echinoidal, bryzoal, crinoidal; sandstone, calcareous, minor carbonaceous clay and silt.

GIS Code

om-y

196

226

Tye

LIMESTONE

SAND

Limestone, silty, marly, lignite 209-212m, over sand, very fine grained, slightly glauconitic & fossiliferous, dark grey.

Strat Unit Name

Ettrick Formation

Strat Unit Description

Glauconitic, fossiliferous marl, calcareous clay and mudstone, silt, fine-grained sand.

GIS Code

om-y-e

226

403

CLAY (UNDIFF. ORIGIN)

SAND

Clay, dark brown, carbonaceous, silty, sand interbeds, over sand, medium-coarse grained, clean.

Strat Unit Name

Renmark Group

Strat Unit Description

Sandstone, carbonaceous sand; silt; clay; lignite. Fluvial lacustrine and swamp environments.

GIS Code

am-r

403

580.23

P-u

DIAMICTITE

Light grey-green sandy units , coarse matrix, supporting polymict conglomerate horizons. (Core 414-635.7m)

Strat Unit Name

Urana Formation

Strat Unit Description

Shale; siltstone; sandstone; diamictite; minor conglomerate and carbonaceous intervals.

GIS Code

P----u

580.23

635.7

Erk

METABASALT

LIMESTONE

Metabasalt & basic lapilli tuff, interbedded limestone & black shale.

Strat Unit Name

Kanmantoo Group

Strat Unit Description

Marine metasandstone, phyllite, schist, gneiss, minor calcsilicate rock and marble.

GIS Code

E-rk

	Qualifications	Organisation	Date	Metres From	Metres To
Select	Geologist	Department for Energy and Mining	19/09/2020	0	635.70

Sample Allowed Hazard

Metres From	Metres To	Feet From	Feet To	Core Group	Library Location	Culled	Core Previously Inspected	Sample Record	Sample Returned to Library
0.00	124.00	0.00	406.82	Cutting	Tonsley	N	Y	N	N
124.00	266.00	406.82	872.70	Cutting	Tonsley	N	Y	N	N
266.00	414.00	872.70	1358.27	Cutting	Tonsley	N	Y	N	N
413.00	431.40	1354.99	1415.35	Core	Tonsley	N	Y	N	N
431.40	438.20	1415.35	1437.66	Core	Tonsley	N	Y	N	N
438.20	444.60	1437.66	1458.66	Core	Tonsley	N	Y	N	N
444.60	451.00	1458.66	1479.66	Core	Tonsley	N	Y	N	N
451.00	457.80	1479.66	1501.97	Core	Tonsley	N	Y	N	N
457.80	463.70	1501.97	1521.33	Core	Tonsley	N	Y	N	N
463.70	469.70	1521.33	1541.01	Core	Tonsley	N	Y	N	N
469.70	475.10	1541.01	1558.73	Core	Tonsley	N	Y	N	N
475.10	481.20	1558.73	1578.74	Core	Tonsley	N	Y	N	N
481.20	487.70	1578.74	1600.07	Core	Tonsley	N	Y	N	N
487.70	492.70	1600.07	1616.47	Core	Tonsley	N	Y	N	N
492.70	499.70	1616.47	1639.44	Core	Tonsley	N	Y	N	N
499.70	505.70	1639.44	1659.12	Core	Tonsley	N	Y	N	N
505.70	512.00	1659.12	1679.79	Core	Tonsley	N	Y	N	N
512.00	518.00	1679.79	1699.48	Core	Tonsley	N	Y	N	N
518.40	524.60	1700.79	1721.13	Core	Tonsley	N	Y	N	N
524.60	530.60	1721.13	1740.81	Core	Tonsley	N	Y	N	N
530.60	536.50	1740.81	1760.17	Core	Tonsley	N	Y	N	N
536.50	542.50	1760.17	1779.86	Core	Tonsley	N	Y	N	N
542.50	548.20	1779.86	1798.56	Core	Tonsley	N	Y	N	N
548.20	554.10	1798.56	1817.91	Core	Tonsley	N	Y	N	N
554.10	560.40	1817.91	1838.58	Core	Tonsley	N	Y	N	N
560.40	566.30	1838.58	1857.94	Core	Tonsley	N	Y	Y	N
566.30	572.20	1857.94	1877.30	Core	Tonsley	N	Y	N	N
572.00	578.00	1876.64	1896.33	Core	Tonsley	N	Y	N	N
578.00	584.00	1896.33	1916.01	Core	Tonsley	N	Y	N	N
584.00	590.00	1916.01	1935.70	Core	Tonsley	N	Y	Y	N
590.00	596.00	1935.70	1955.38	Core	Tonsley	N	Y	Y	N
596.00	601.80	1955.38	1974.41	Core	Tonsley	N	Y	Y	N
601.80	608.00	1974.41	1994.75	Core	Tonsley	N	Y	Y	Y
608.00	613.40	1994.75	2012.47	Core	Tonsley	N	Y	Y	N
613.40	619.00	2012.47	2030.84	Core	Tonsley	N	Y	Y	N
619.00	623.00	2030.84	2043.96	Core	Tonsley	N	Y	Y	N
623.00	630.50	2043.96	2068.57	Core	Tonsley	N	Y	Y	N
630.50	635.70	2068.57	2085.63	Core	Tonsley	N	Y	Y	N

Metres From	Metres To	PDF Summary Images
			Request information about NVCL data

Downloads

Download Type:

Spectral Geologist (TSG) data file

TSG viewer is required to view the downloaded TSG files. The following link is a suggested free viewer: https://research.csiro.au/thespectralgeologist/

Enter an email address for tracking the status of the download request.
Email address*: Email address is required

Options:

linescan

spectra

profilometer

traypics

mospic

mappics

Scalars

List of Scalars:

Plots

Summary Mineral Plots

Shortwave Infrared

Thermal Infrared

Scanned Core Imagery

Core Library Image

Sample Number	Depth From	Depth To	Sample Source	Collected By	Date Collected
59336	563		Drill core	ALLEY, N.F.	8/06/1990
40934	584.13	584.33	Drill core	CLOUGH, B.J.	13/06/1990
164951	584.3	584.31	Drill core	SDM
40935	589.5	589.65	Drill core	CLOUGH, B.J.	13/06/1990
164952	592.4	592.41	Drill core	SDM
40936	592.4	592.54	Drill core	CLOUGH, B.J.	13/06/1990
2696012	598.8	599.4	Drill core	CURTIS, S.O.	7/02/2019
40953	599.7	600	Drill core	CLOUGH, B.J.	25/10/1990
40951	601.1	601.15		FARRAND, M.G.	13/06/1990
40937	603.65	603.8	Rock outcrop / float	CLOUGH, B.J.	13/06/1990
40938	604.7	604.85		CLOUGH, B.J.	13/06/1990
40939	605.8	605.95	Drill core	CLOUGH, B.J.	13/06/1990
40940	607	607.25	Rock outcrop / float	CLOUGH, B.J.	13/06/1990
40941	608.43	608.55	Drill core	CLOUGH, B.J.	13/06/1990
40942	610.9	611		CLOUGH, B.J.	13/06/1990
40943	612.15	612.25		CLOUGH, B.J.	13/06/1990
59337	613		Drill core	ALLEY, N.F.	8/06/1990
40944	617.6	617.7		CLOUGH, B.J.	13/06/1990
40950	617.9	618	Drill core	CLOUGH, B.J.	13/06/1990
164953	621.05	621.06	Drill core	SDM
40945	621.05	621.25	Drill core	CLOUGH, B.J.	13/06/1990
40946	621.6	621.75		CLOUGH, B.J.	13/06/1990
40947	627.88	627.95	Drill core	CLOUGH, B.J.	13/06/1990
4351220	628.61	629.11	Drill core	EXTERNAL - REFER CORE INSPECTION	3/05/2023
2696013	629.2	629.5	Drill core	CURTIS, S.O.	7/02/2019
40948	630.32	630.47	Drill core	CLOUGH, B.J.	13/06/1990
40949	635.6	635.7	Drill core	CLOUGH, B.J.	13/06/1990
59334				CLOUGH, B.J.	13/06/1990

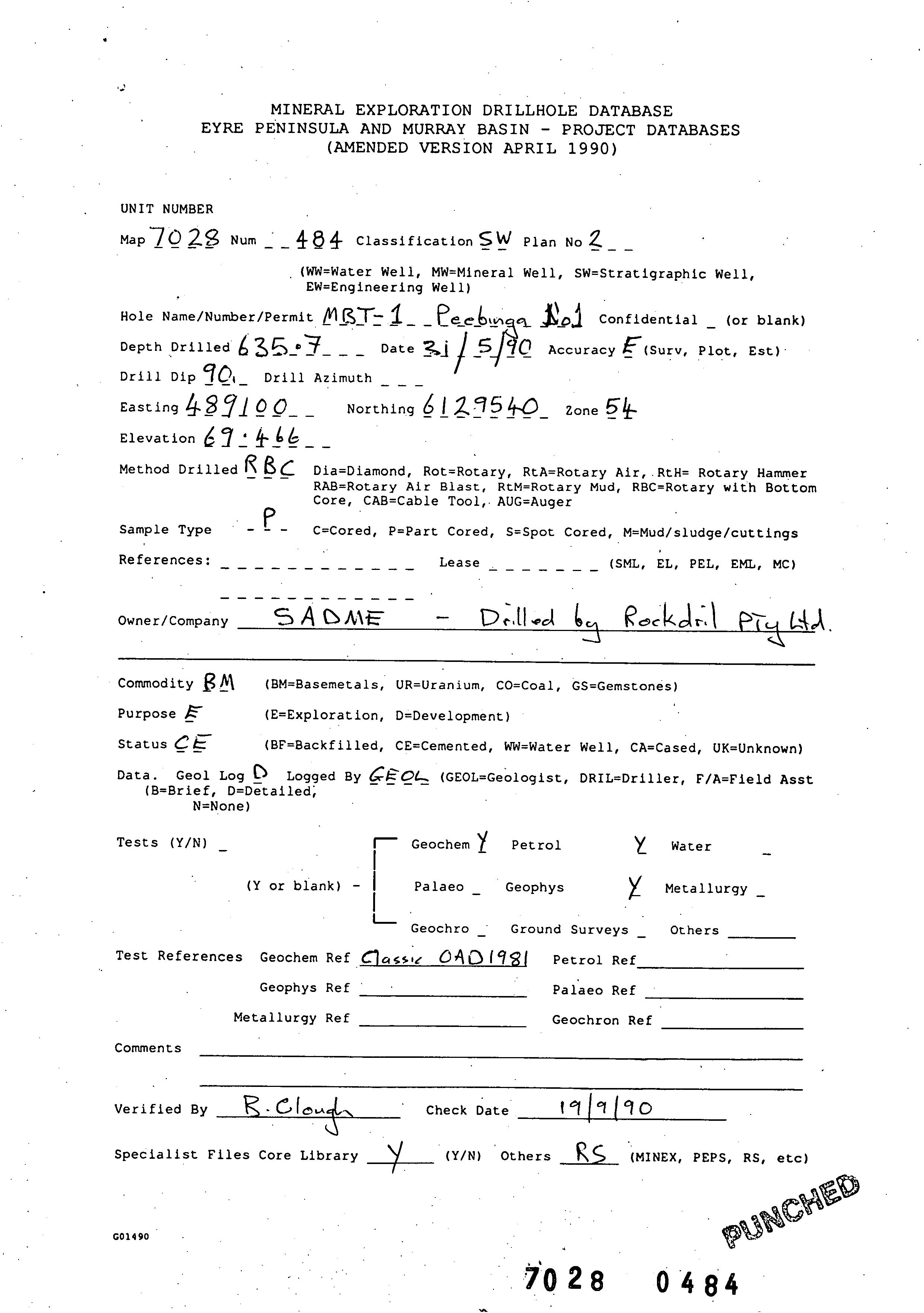

Document	Document ID	Information Type	Document Details	Reports Database
Report Book	91/00015	Geochemistry Ref.	Rankin, L.R.;Clough, B.J.;Farrand, M.G.;Barnett, S.R.;Lablack, K.;Gatehouse, C.G.;Hough, L.P. Murray Basin Basement Transect Project : 1990 well completion reports. South Australia. Department of Mines and Energy. Report Book 1991	SAMREF
Report Book	91/00015	Geological Log Ref.	Rankin, L.R.;Clough, B.J.;Farrand, M.G.;Barnett, S.R.;Lablack, K.;Gatehouse, C.G.;Hough, L.P. Murray Basin Basement Transect Project : 1990 well completion reports. South Australia. Department of Mines and Energy. Report Book 1991	SAMREF
Report Book	91/00015	Geophysical Log(s)	Rankin, L.R.;Clough, B.J.;Farrand, M.G.;Barnett, S.R.;Lablack, K.;Gatehouse, C.G.;Hough, L.P. Murray Basin Basement Transect Project : 1990 well completion reports. South Australia. Department of Mines and Energy. Report Book 1991	SAMREF
Report Book	91/00015	Master Ref.	Rankin, L.R.;Clough, B.J.;Farrand, M.G.;Barnett, S.R.;Lablack, K.;Gatehouse, C.G.;Hough, L.P. Murray Basin Basement Transect Project : 1990 well completion reports. South Australia. Department of Mines and Energy. Report Book 1991	SAMREF
Report Book	91/00015	Petrology Ref.	Rankin, L.R.;Clough, B.J.;Farrand, M.G.;Barnett, S.R.;Lablack, K.;Gatehouse, C.G.;Hough, L.P. Murray Basin Basement Transect Project : 1990 well completion reports. South Australia. Department of Mines and Energy. Report Book 1991	SAMREF
