Drillhole:

104382

Drillhole Name:

SKELETON 2

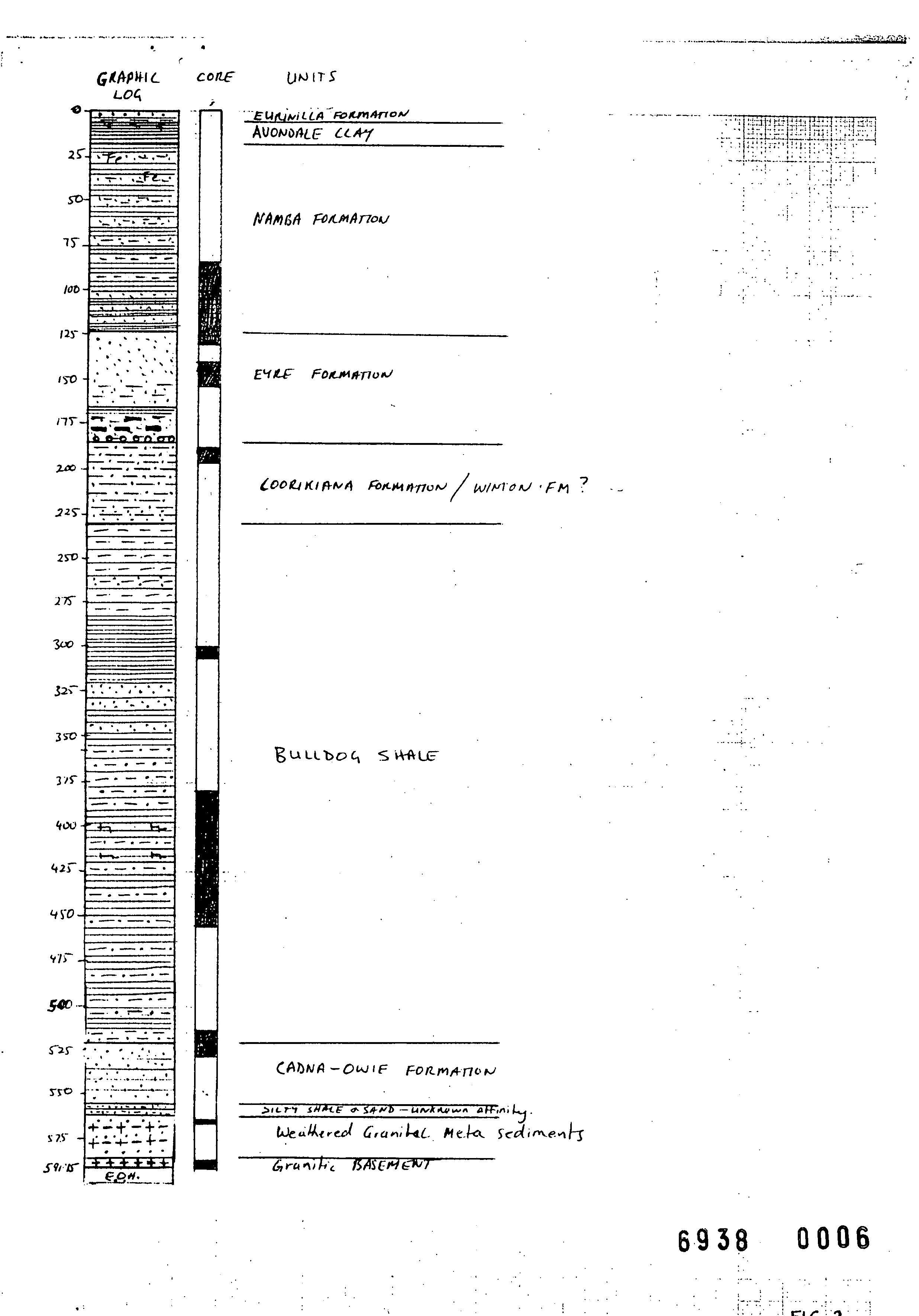

Details LocationStratigraphyLithologyPetrophysics Core Details Spectral Scanning Rock Samples Historical Documents References

Representative Drillhole From a Larger Program

Drillhole Program Comments

Map / Unit Number

693800006

Max Drilled Depth (m)

591.75

Max Drilled Date

21/07/1989

Cored Length

171.35

Tenement

Operator

South Australia. Department of Mines and Energy.

Target

General Comments

Dip

-90

Azimuth

Class

Mineral Water Well Petroleum Engineering Stratigraphy

Datum

GDA2020

Coordinate Source

Surveying

MGA Easting

404850.01

MGA Northing

6691078.81

MGA Zone

Long Degrees

140

Long Minutes

Long Seconds

51.819

S Lat Degrees

S Lat Minutes

S Lat Seconds

26.267

Long Degrees Decimal

140.0143943

Lat Degrees Decimal

-29.9072965

Horizontal Accuracy

Map 250K

SH5406 CALLABONNA

Map 100K

6938 Callabonna

Map 50K

SA Geodata - Database Reference

Site No

93468

Metres From

Metres To

Map Symbol

Major Lithology

Minor Lithology

Description

6.4

Qpae

CLAY (UNDIFF. ORIGIN)

Brown clay

Strat Unit Name

Eurinilla Formation

Strat Unit Description

Sand and gravel, alluvial, lacustrine, lacustrine shoreline, red-brown to yellow-brown.

GIS Code

I---ae

6.4

TpQaw

CLAY (UNDIFF. ORIGIN)

SILT

Green clay, 30% silt

Strat Unit Name

Willawortina Formation

Strat Unit Description

Mud, sandy; dolomite, silty, lacustrine, floodplain. Clay, green, distal fan, mudflow and playa. Gravel, coarse, framework supported, braided fan. Gravel, clayey, matrix supported, debris flows. Often calcreted or gypsified.

GIS Code

pI--aw

122.5

Topn

CLAYSTONE

CLAY (UNDIFF. ORIGIN)

Grey & mottled claystone & clay, locally sandy; silcrete 19-24m & 48-50m; white dolomitic clay & sand from 118m

Strat Unit Name

Namba Formation

Strat Unit Description

Sand, fine to medium-grained, poorly sorted, angular, silt, thin dolomite, oolitic dolomite interbeds. Shallow, brackish to fresh water lakes.

GIS Code

op---n

122.5

184

Taee

SAND

LIGNITE

Lignitic & carbonaceous sand, laminated lignite, local clay; gravelly toward base

Strat Unit Name

Eyre Formation

Strat Unit Description

Pyritic, carbonaceous sand, grain-size ranges from silt to small cobble, with beds of lignite and clay. Clays are montmorillonite, kaolinite and illite. Braided streams.

GIS Code

ae---e

184

312

Krmb

SILT

SAND

Grey silt to fine sand & claystone, shaley in lower part

Strat Unit Name

Bulldog Shale

Strat Unit Description

Mudstone, grey, bioturbated, fossiliferous and shaly; minor silt to very fine-grained sandstone intervals.

GIS Code

K--rmb

312

330

Krm

SAND

CLAY (UNDIFF. ORIGIN)

Silty & clayey sand

Strat Unit Name

Marree Subgroup

Strat Unit Description

Shale, dark grey, bioturbated, fossiliferous; sandstone, fine to very fine grained, calcareous, clayey.

GIS Code

K--rm

330

520.4

Krmb

CLAYSTONE

SILTSTONE

Grey shaley claystone/siltstone with sand laminae in lower part; locally bioturbated; cone-in-cone limestone at 386m

Strat Unit Name

Bulldog Shale

Strat Unit Description

Mudstone, grey, bioturbated, fossiliferous and shaly; minor silt to very fine-grained sandstone intervals.

GIS Code

K--rmb

520.4

548

K-c

SANDSTONE

SILTSTONE

Sandstone with interbedded grey siltstone, basal pebbles, calcareous cap rock

Strat Unit Name

Cadna-owie Formation

Strat Unit Description

Sandstone, fine-grained, with coarse-grained sandstone beds, and pale grey siltstone, minor conglomerate.

GIS Code

K----c

548

564.25

REGOLITH

Regolith: highly weathered basement

Strat Unit Name

Moolawatana Suite

Strat Unit Description

Granite to quartz monzonite, coarse, grey, porphyritic, rapakivi-like, massive to gneissic; quartz monzonite, medium to coarse, white-grey; granite, tabular feldspar, grey, gneissic, enriched in REE, U, Th. Minor tourmaline-bearing granite or monzogranite, granodiorite. A-type, ~1560-1550 Ma.

GIS Code

M--m

564.25

591.75

ADAMELLITE

CLAY (UNDIFF. ORIGIN)

Altered biotite adamellite, upper part weathered to clay; chlorite+quartz+sericite alteration, minor pyrite, chalcopyrite

Strat Unit Name

Moolawatana Suite

Strat Unit Description

GIS Code

M--m

Sample Allowed Hazard

Metres From	Metres To	Feet From	Feet To	Core Group	Library Location	Culled	Core Previously Inspected	Sample Record	Sample Returned to Library
0.00	54.00	0.00	177.17	Cutting	Tonsley	N	Y	Y	Y
0.00	480.00	0.00	1574.80	Cutting	Tonsley	N	Y	Y	Y
54.00	170.00	177.17	557.74	Cutting	Tonsley	N	Y	Y	Y
84.00	88.10	275.59	289.04	Core	Tonsley	N	Y	Y	Y
88.10	91.40	289.04	299.87	Core	Tonsley	N	Y	Y	Y
91.40	95.00	299.87	311.68	Core	Tonsley	N	Y	Y	Y
95.00	99.00	311.68	324.80	Core	Tonsley	N	Y	Y	Y
99.00	103.00	324.80	337.93	Core	Tonsley	N	Y	Y	Y
103.00	107.00	337.93	351.05	Core	Tonsley	N	Y	Y	Y
107.00	111.00	351.05	364.17	Core	Tonsley	N	Y	Y	Y
111.00	115.00	364.17	377.30	Core	Tonsley	N	Y	Y	Y
115.00	119.00	377.30	390.42	Core	Tonsley	N	Y	Y	Y
119.00	123.00	390.42	403.54	Core	Tonsley	N	Y	Y	Y
123.00	127.00	403.54	416.67	Core	Tonsley	N	Y	Y	Y
127.00	146.00	416.67	479.00	Core	Tonsley	N	Y	Y	Y
146.00	150.00	479.00	492.13	Core	Tonsley	N	Y	Y	Y
150.00	153.00	492.13	501.97	Core	Tonsley	N	Y	Y	Y
170.00	274.00	557.74	898.95	Cutting	Tonsley	N	Y	Y	Y
187.00	188.00	613.52	616.80	Core	Tonsley	N	Y	Y	Y
188.00	192.00	616.80	629.92	Core	Tonsley	N	Y	Y	Y
192.00	195.70	629.92	642.06	Core	Tonsley	N	Y	Y	Y
274.00	461.00	898.95	1512.47	Cutting	Tonsley	N	Y	Y	Y
300.00	304.00	984.25	997.38	Core	Tonsley	N	Y	Y	Y
304.00	306.00	997.38	1003.94	Core	Tonsley	N	Y	Y	Y
380.00	382.00	1246.72	1253.28	Core	Tonsley	N	Y	N	N
382.00	385.20	1253.28	1263.78	Core	Tonsley	N	Y	Y	Y
385.20	389.00	1263.78	1276.25	Core	Tonsley	N	Y	Y	Y
389.00	393.00	1276.25	1289.37	Core	Tonsley	N	Y	Y	N
393.00	396.70	1289.37	1301.51	Core	Tonsley	N	Y	Y	Y
396.70	400.50	1301.51	1313.98	Core	Tonsley	N	Y	Y	Y
400.50	404.40	1313.98	1326.77	Core	Tonsley	N	Y	Y	Y
404.40	408.40	1326.77	1339.90	Core	Tonsley	N	Y	Y	Y
408.40	412.40	1339.90	1353.02	Core	Tonsley	N	Y	Y	Y
412.40	416.40	1353.02	1366.14	Core	Tonsley	N	Y	Y	Y
416.40	420.20	1366.14	1378.61	Core	Tonsley	N	Y	Y	Y
420.20	424.10	1378.61	1391.40	Core	Tonsley	N	Y	Y	Y
424.10	428.00	1391.40	1404.20	Core	Tonsley	N	Y	Y	Y
428.00	431.80	1404.20	1416.67	Core	Tonsley	N	Y	Y	Y
431.80	435.80	1416.67	1429.79	Core	Tonsley	N	Y	Y	N
435.80	439.60	1429.79	1442.26	Core	Tonsley	N	Y	Y	Y
439.60	443.60	1442.26	1455.38	Core	Tonsley	N	Y	Y	Y
443.60	447.50	1455.38	1468.18	Core	Tonsley	N	Y	Y	Y
447.50	451.50	1468.18	1481.30	Core	Tonsley	N	Y	Y	Y
451.50	455.50	1481.30	1494.42	Core	Tonsley	N	Y	Y	N
455.50	459.70	1494.42	1508.20	Core	Tonsley	N	Y	Y	Y
461.00	589.00	1512.47	1932.41	Cutting	Tonsley	N	Y	Y	Y
481.00	589.00	1578.08	1932.41	Cutting	Tonsley	N	Y	Y	Y
513.30	516.50	1684.06	1694.55	Core	Tonsley	N	Y	Y	Y
516.50	520.30	1694.55	1707.02	Core	Tonsley	N	Y	Y	Y
520.30	524.10	1707.02	1719.49	Core	Tonsley	N	Y	Y	Y
524.10	528.50	1719.49	1733.92	Core	Tonsley	N	Y	Y	Y
563.60	566.60	1849.08	1858.92	Core	Tonsley	N	Y	Y	Y
589.00	591.80	1932.41	1941.60	Core	Tonsley	N	Y	Y	Y

Metres From	Metres To	PDF Summary Images
0	591.8	104382_Skeleton_2_cs.pdf (425 KB)	Request information about NVCL data
